The Modular Immersion Bracket provides a controlled deployment solution for submersible payloads and sensors. Built for versatility, it supports multiple configurations and seamless integration with sonar, ADCP, and other monitoring equipment.

Precision

Retractable and extendable design allowing accurate and controlled submersion depth during operations

Versatility

Easily installable on both catamaran decks and bow positions for flexible deployment

Adaptability

Adjustable height settings and multiple rail mounting options to fit diverse platform requirements

Stability

High-strength support rails engineered to minimize vibrations and ensure smooth performance

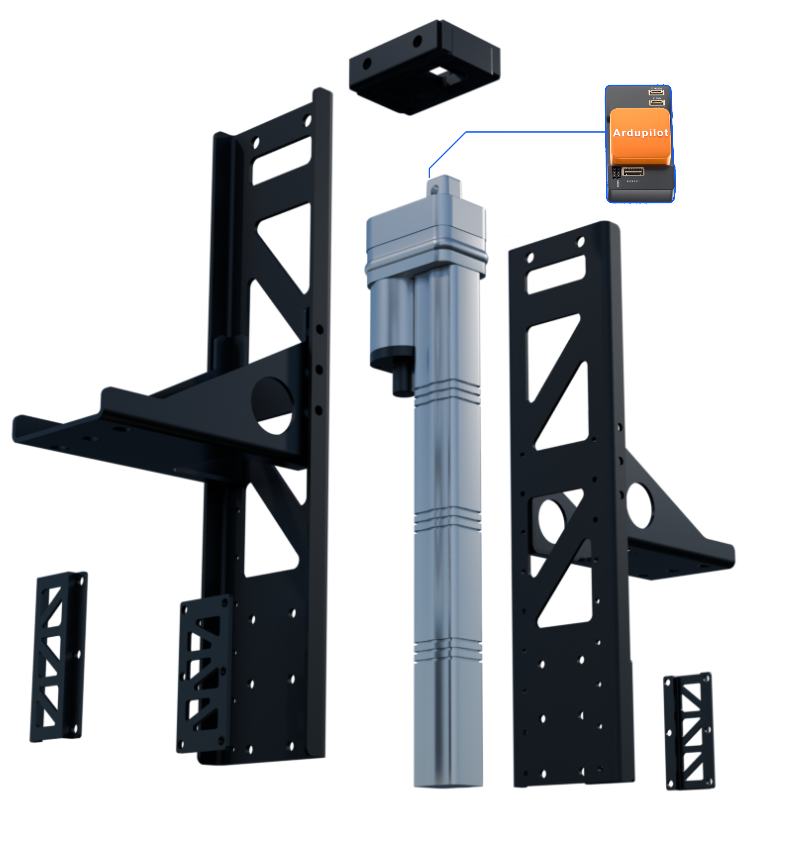

Linear Actuator Options

► IP68-rated linear actuators with multiple stroke lengths (51 mm – 914 mm).

► Designed for integration with advanced flight controllers, ensuring robust communication and precise control.

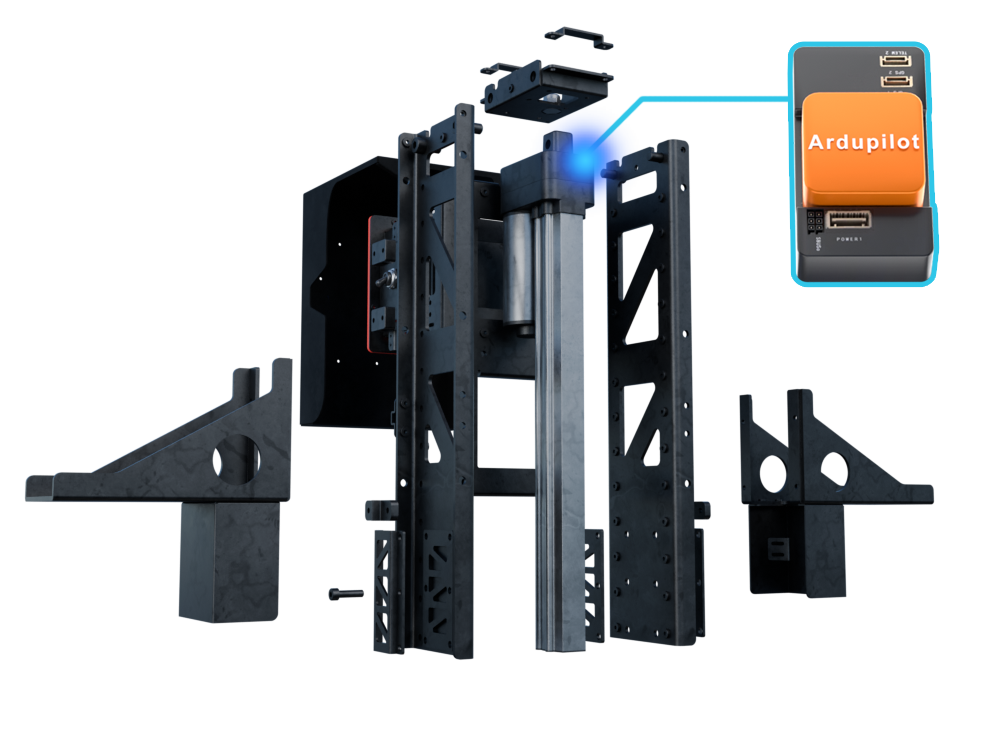

► Fully compatible with standard flight controllers via PWM control signals, enabling autonomous winch operation and sensor deployment (e.g., integration with ArduPilot based systems such as Pixhawk

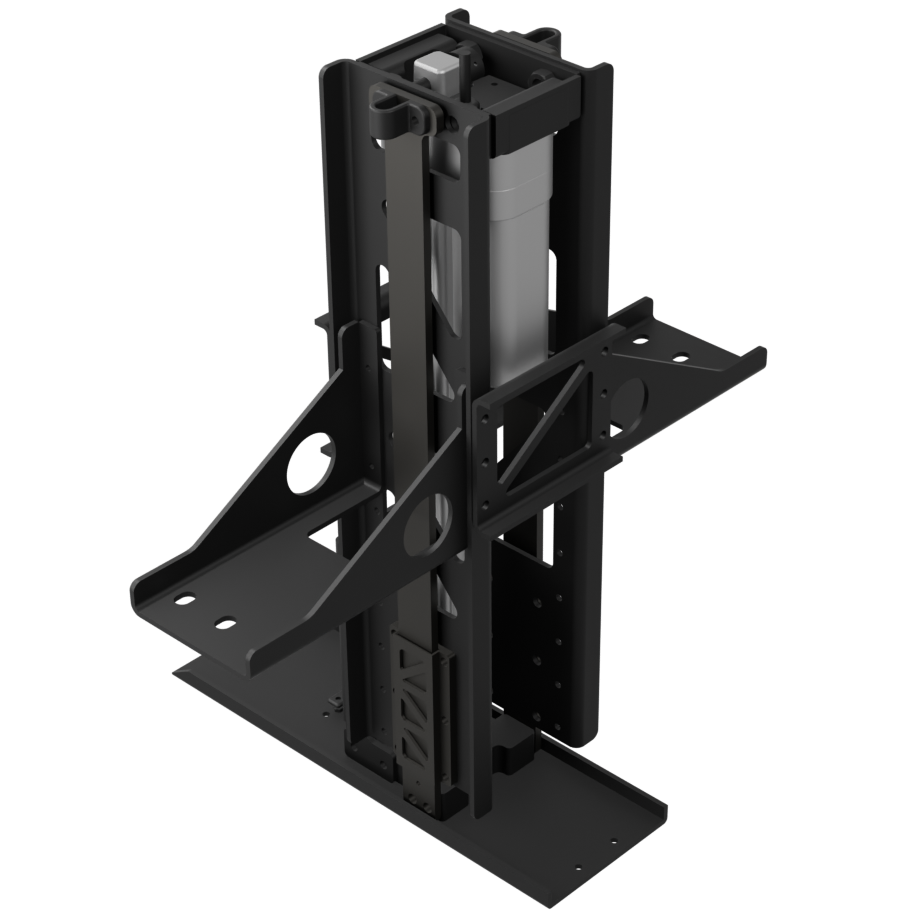

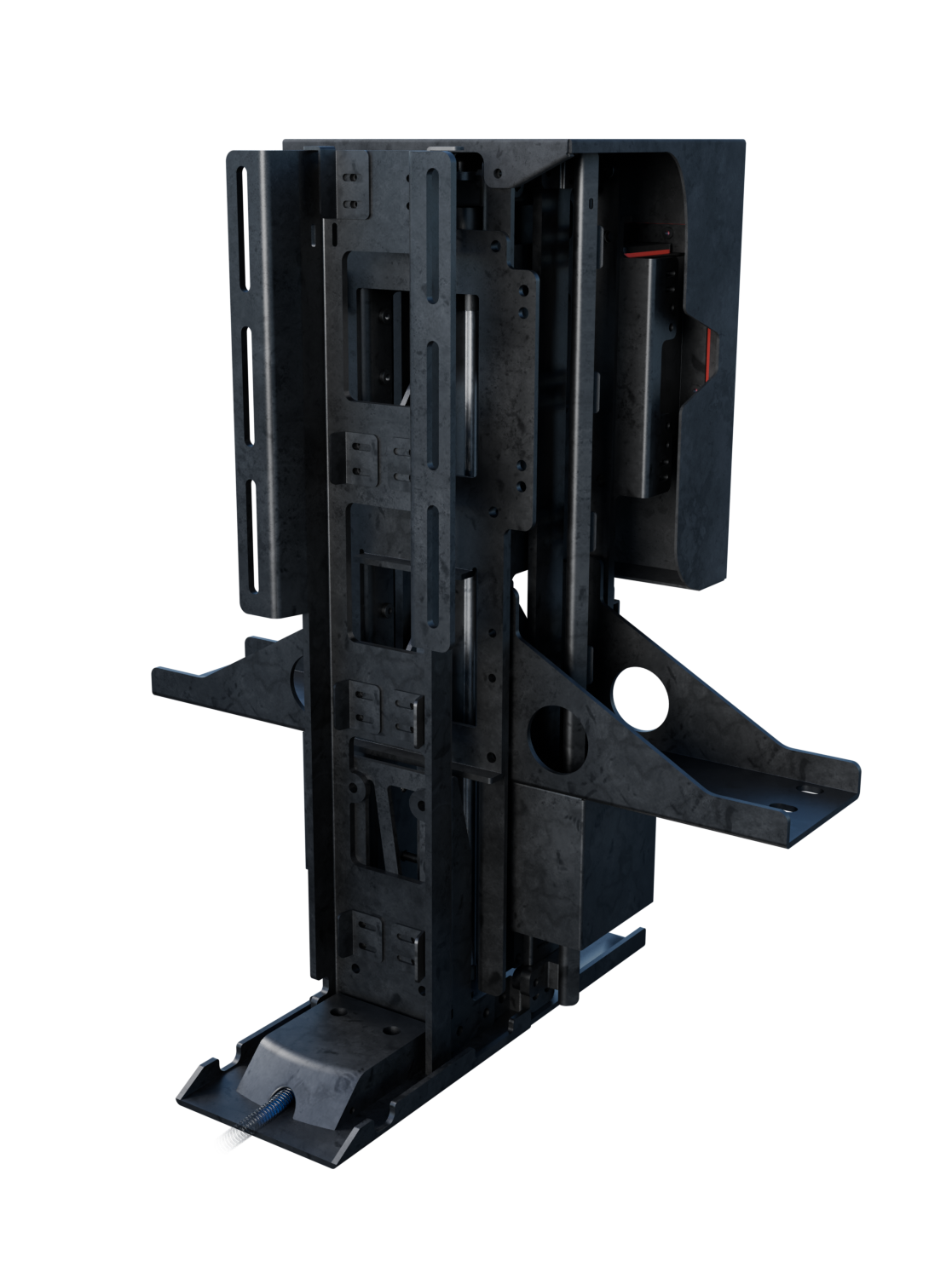

Immersion Bracket Mounting

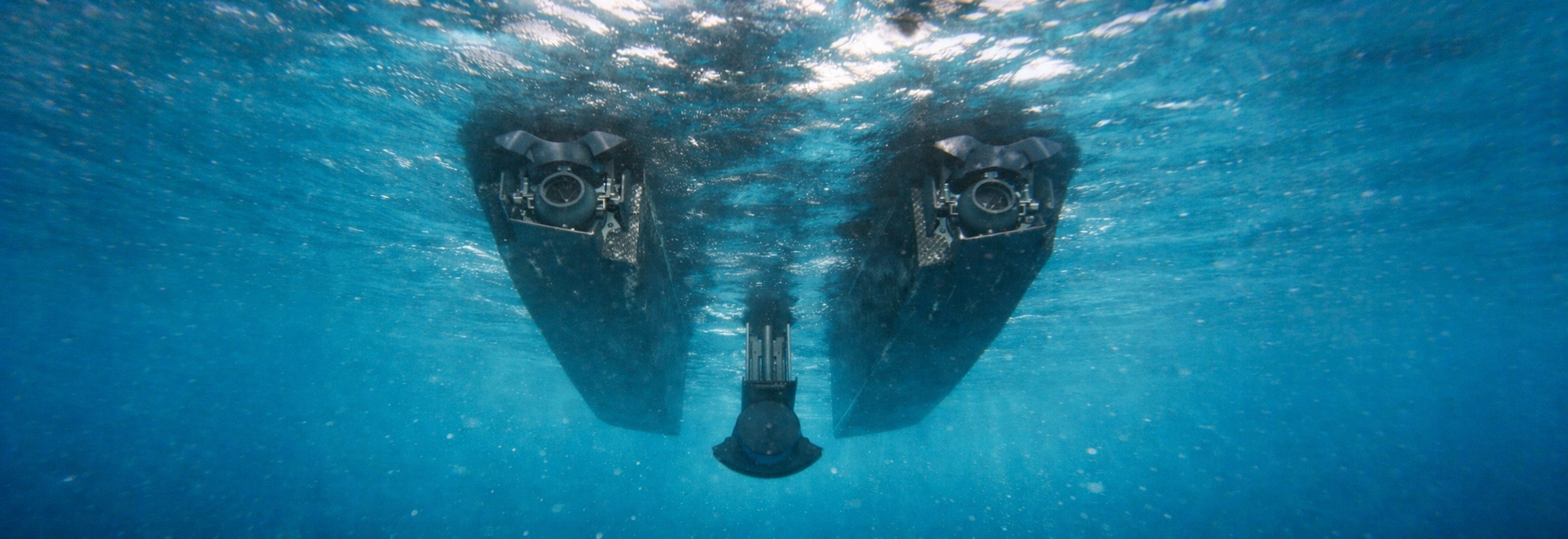

  • the Modular Immersion Bracket can both be installed on a catamaran boat and on the bow of a boat
  • The Modular Immersion Bracket can be mounted at different heights depending on use and various positions along the rails
  • The Support Rails is designed with structural integrity and minimization of vibrations in mind and allow mounting in different height.

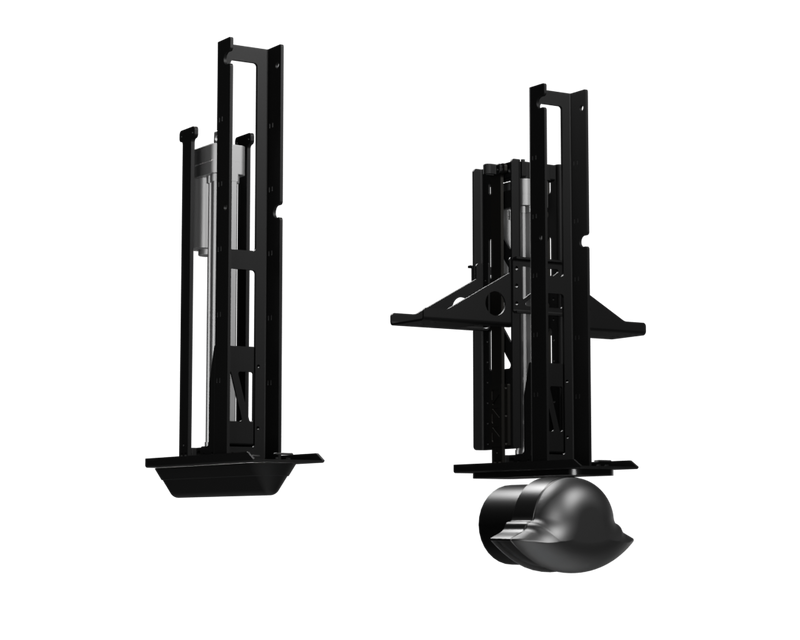

Sensor Integration

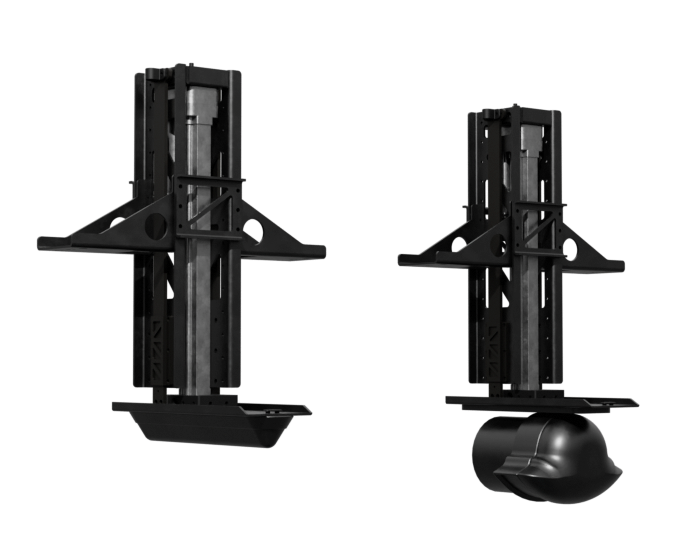

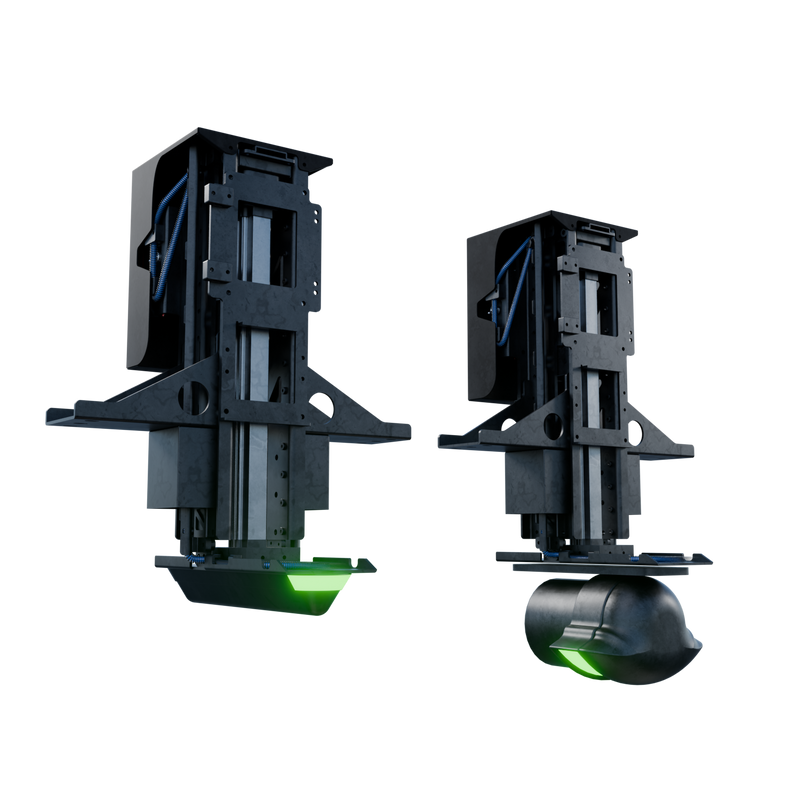

Bottom Mounting

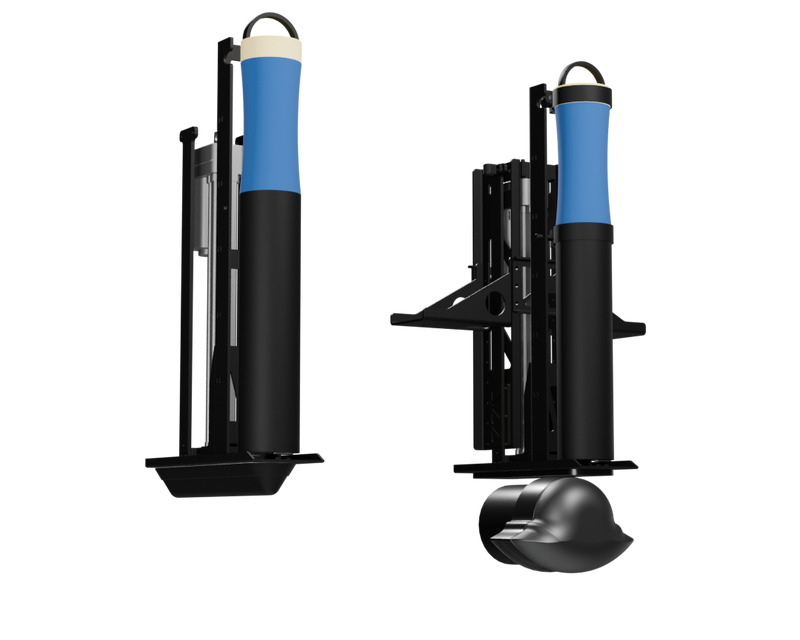

► Supports a wide range of sonar units via a modular attachment plate

► Compatible with various sonar sizes, including Side Scan Sonar and IWBMS systems

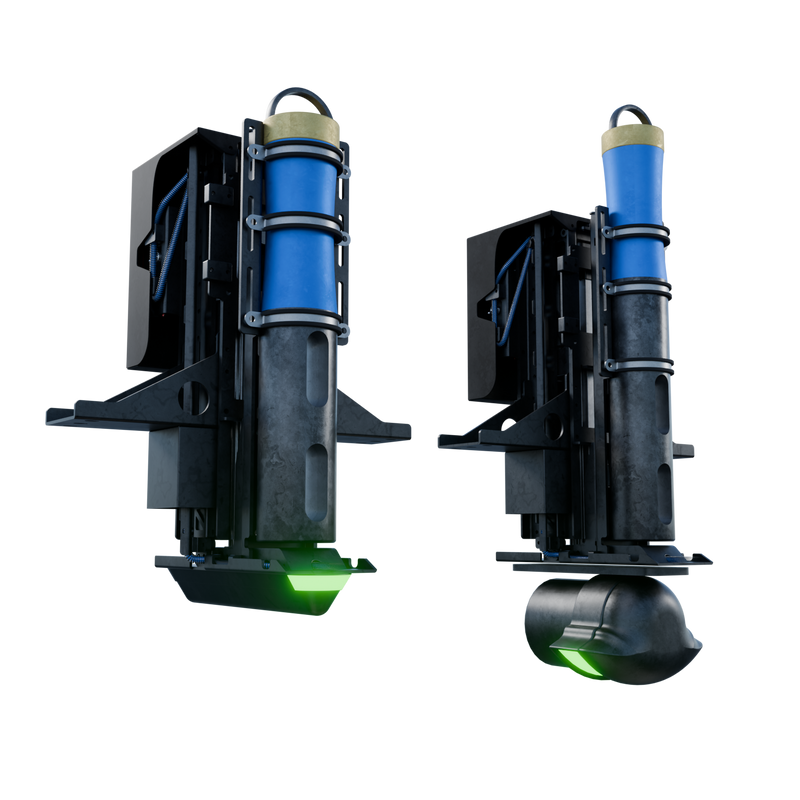

Bottom & Front Mounting

► Allows integration of multiple sensor types for versatile data acquisition

► Compatible with ADCP (Acoustic Doppler Current Profiler), Echo Sounders, and Multiparameter Water Quality Sondes

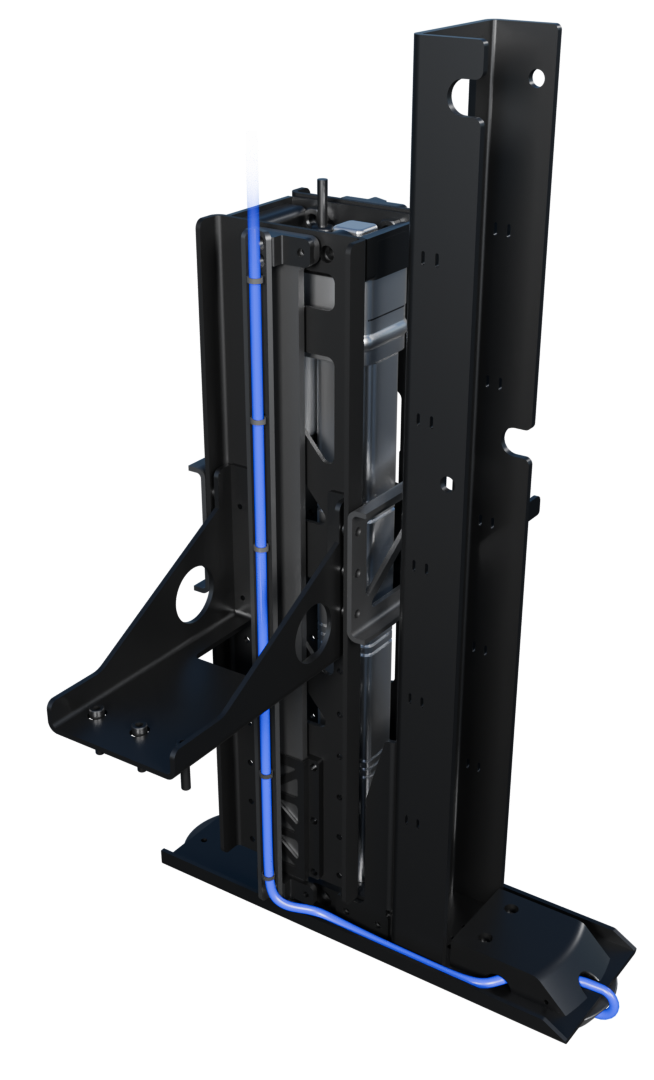

Dynamic Cable Management

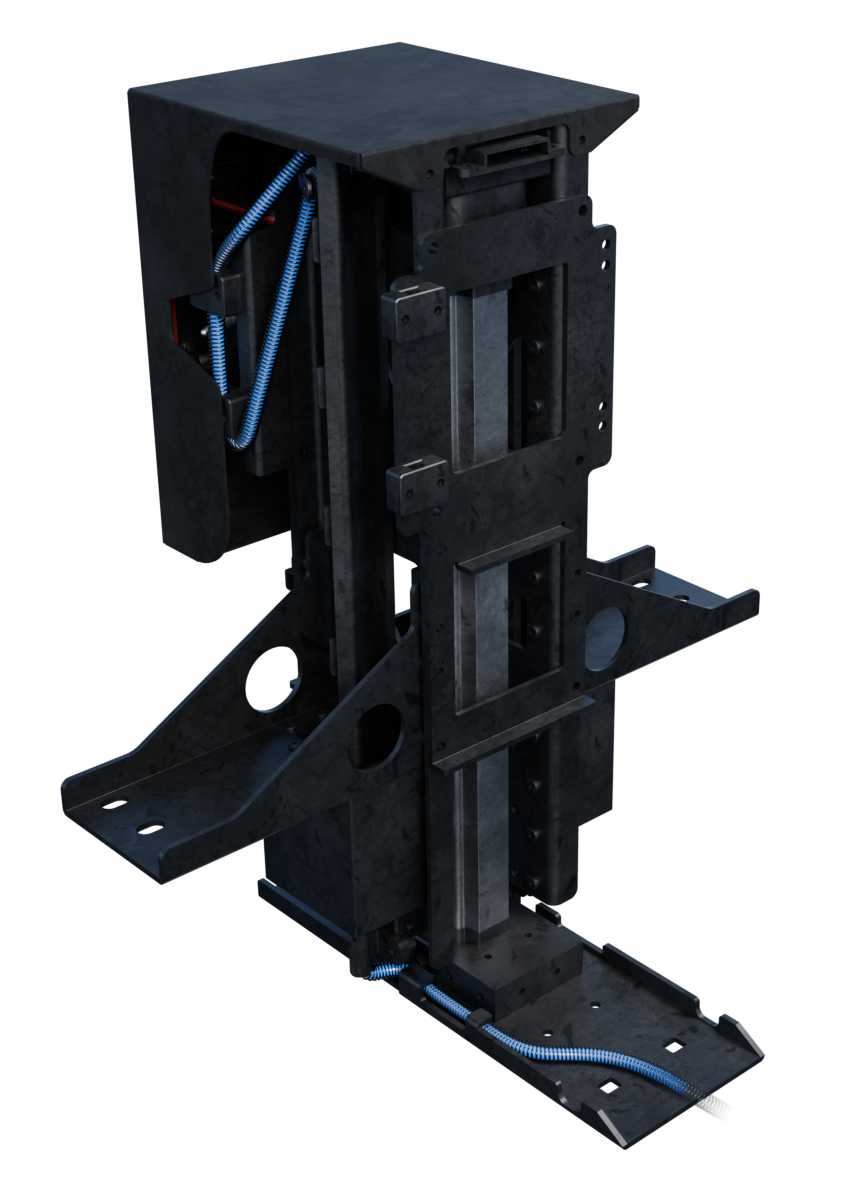

  • Built-in system to keep cables secure despite moving parts
  • Cable braids mounted on support rails
  • Sufficient leeway for secure entry into electronic boxes during vertical movement
