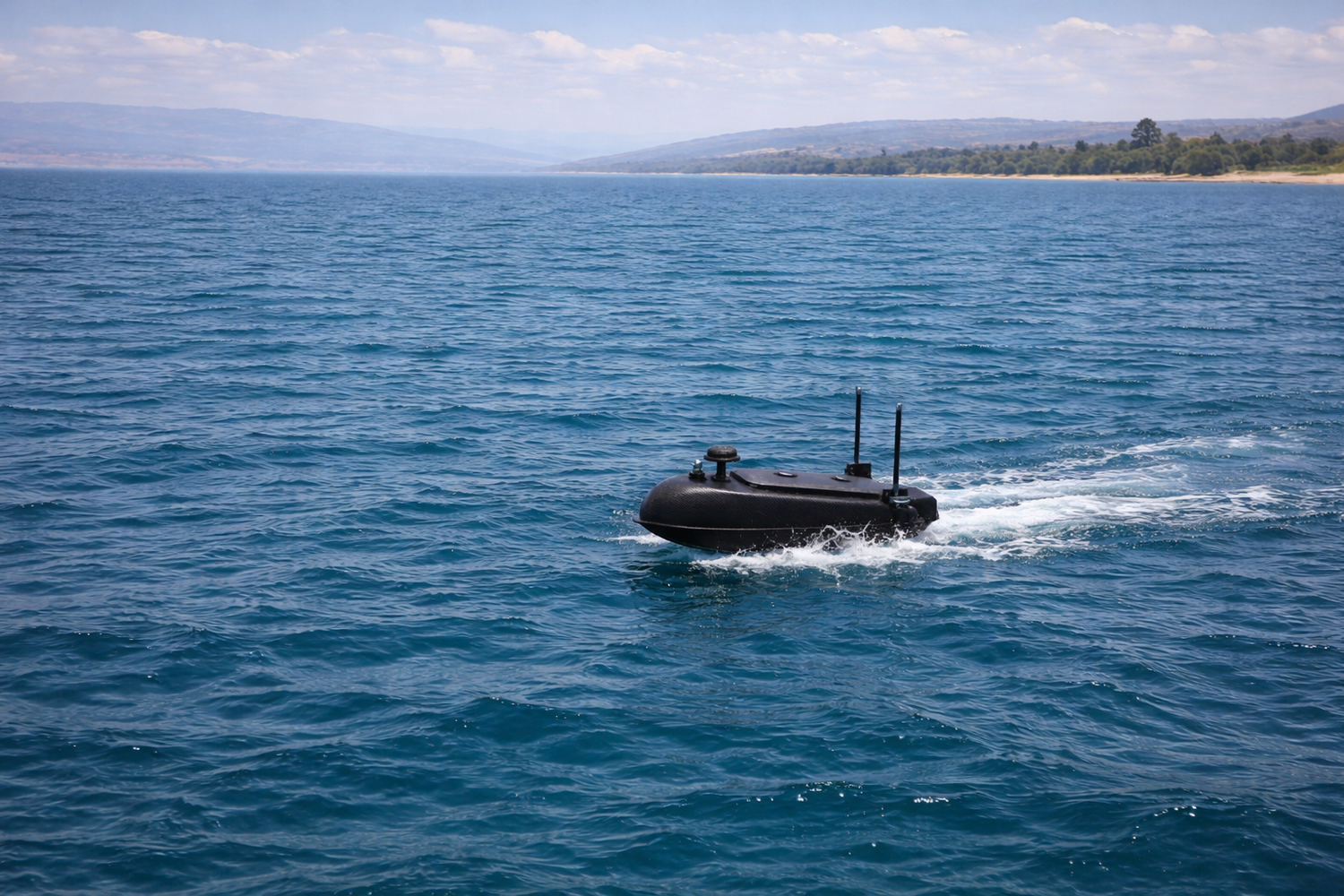

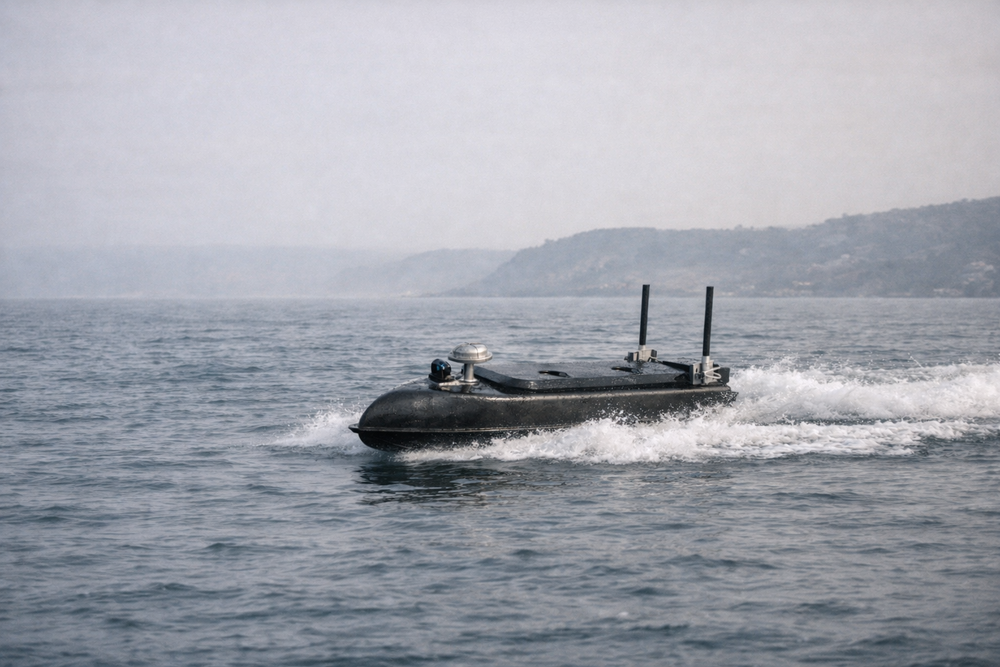

mono-hull USV, compact unmanned surface vessel, shallow-water USV, jet-powered USV, autonomous marine platform. Contego - viper 110 on water - usv for marine robotics
mono-hull USV, compact unmanned surface vessel, shallow-water USV, jet-powered USV, autonomous marine platform.

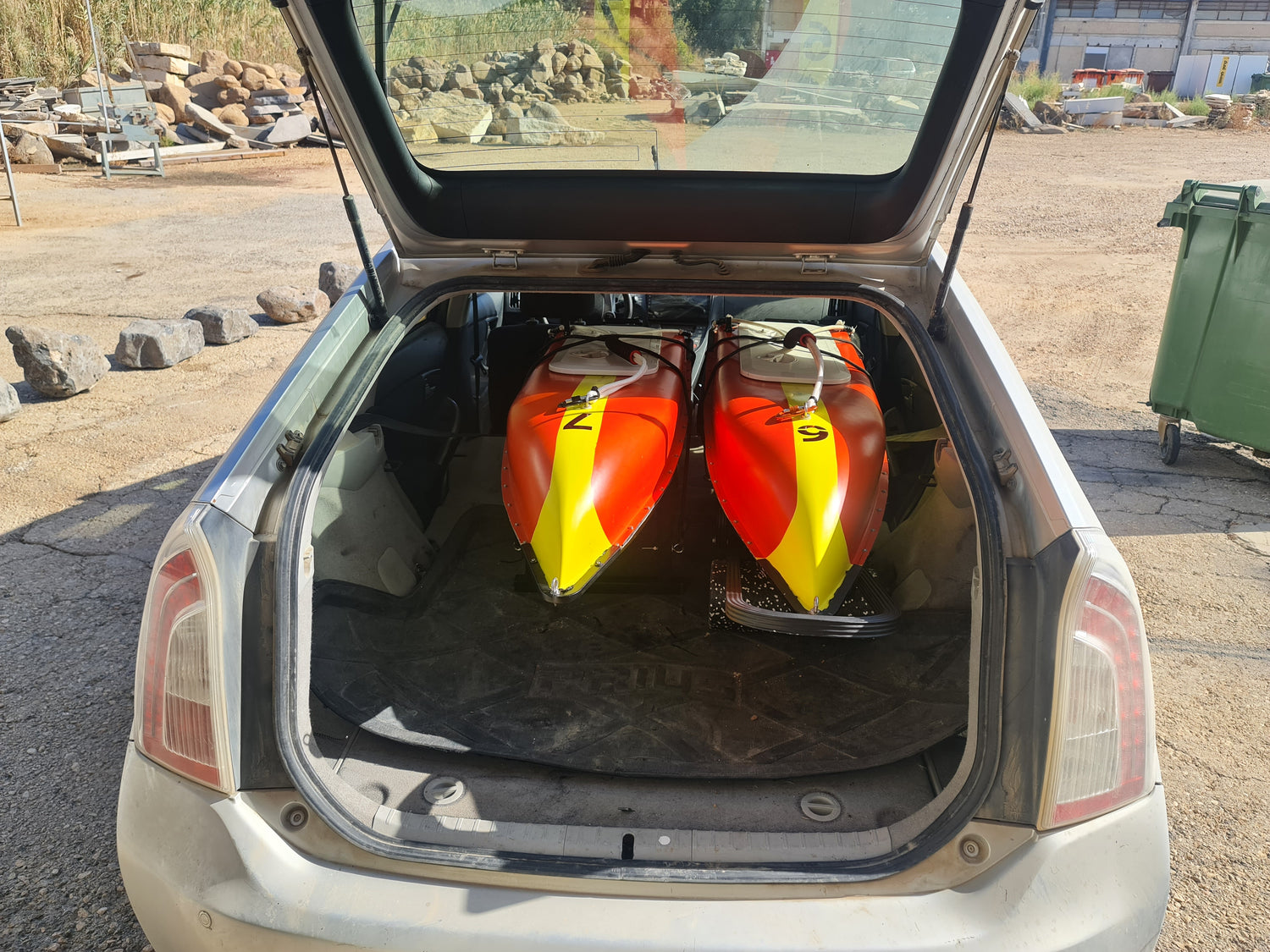

mono-hull USV, compact unmanned surface vessel, shallow-water USV, jet-powered USV, autonomous marine platform. Contego - viper 110 in car- usv for marine robotics
mono-HULL PLATFORM

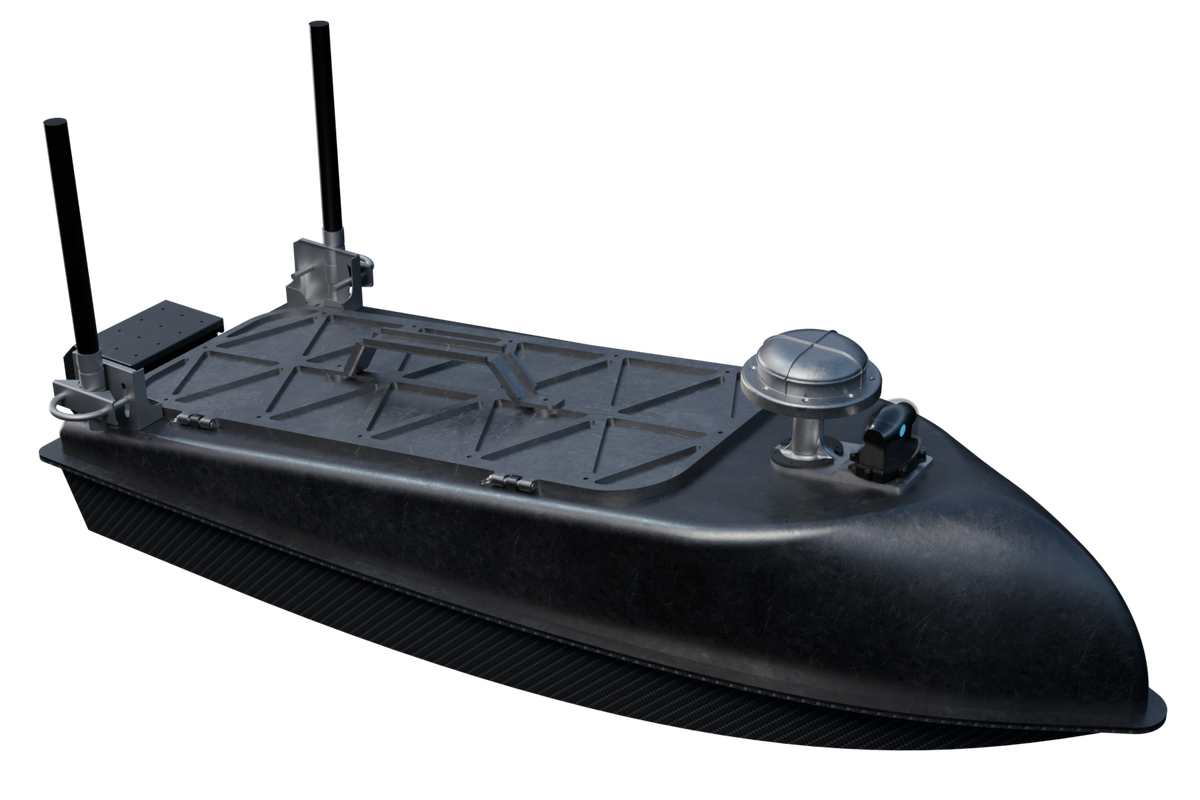

Viper 110

Remotely Operated / Autonomous Survey and Security USV Platform

REQUEST A QUOTE
Viper RANGE • 110 • 160 • 270 • 460
Top Speed
~20-28 knots
Idle time
Max 70 hours
Dimensions
~116 x 39 x 40 cm
Hull Payload Capacity
~5 kg
Hull Material
Carbon Fiber
Dry Weight
~17 kg
Specifications, performance figures, Idle time estimates, payload capacities, operational capabilities and speed estimates may vary depending on payload configuration, propulsion setup, battery configuration, environmental conditions, software settings, mission profile and customer-specific integrations.
Download datasheet

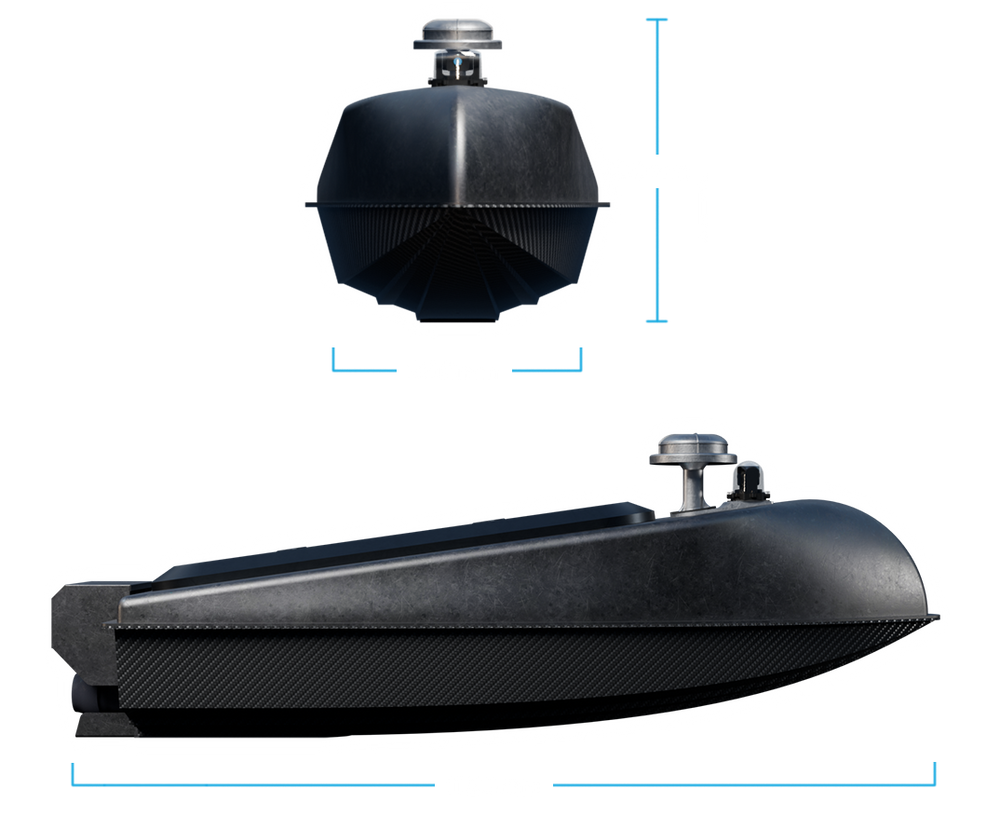

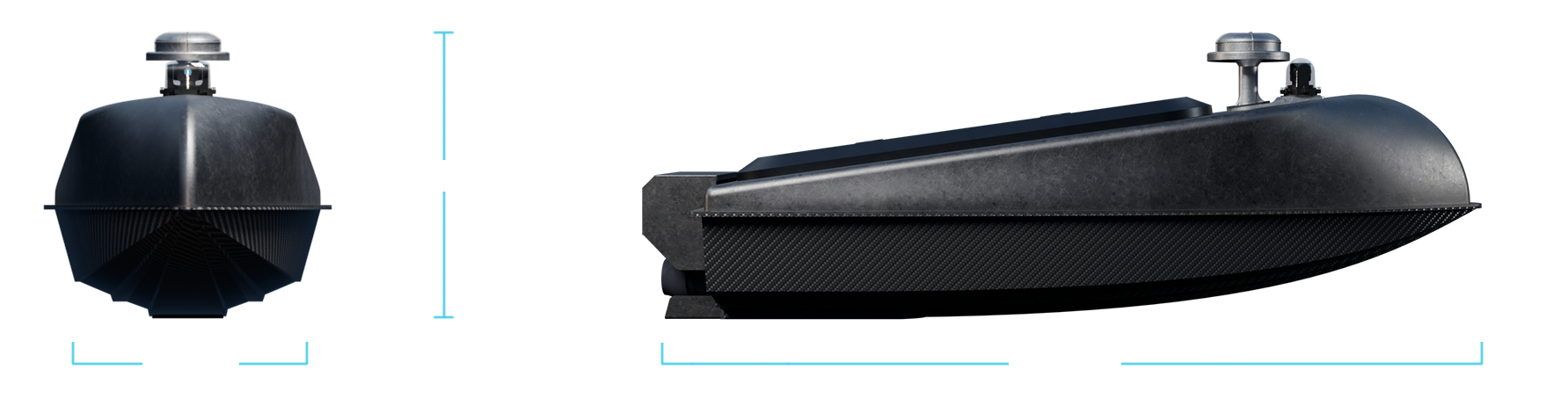

GEOMETRY

mono-hull USV, compact unmanned surface vessel, shallow-water USV, jet-powered USV, autonomous marine platform. Contego - viper 110 geometry- usv for marine robotics mono-hull USV, compact unmanned surface vessel, shallow-water USV, jet-powered USV, autonomous marine platform. Contego - viper 110 geometry- usv for marine robotics
mono-hull USV, compact unmanned surface vessel, shallow-water USV, jet-powered USV, autonomous marine platform. Contego - viper 110 hydra jet engine - usv for marine robotics

PROPULSION

Single electric hydro-jet drive .

mono-hull USV, compact unmanned surface vessel, shallow-water USV, jet-powered USV, autonomous marine platform. Contego - viper 110 hydra jet engine - usv for marine robotics
  • Electric single 71mm hydro-jet engine
  • Hard Anodized impellers
  • 2x independent Water cooling channels for Motor & ESC
EXPLORE HYDRA JET ENGINES

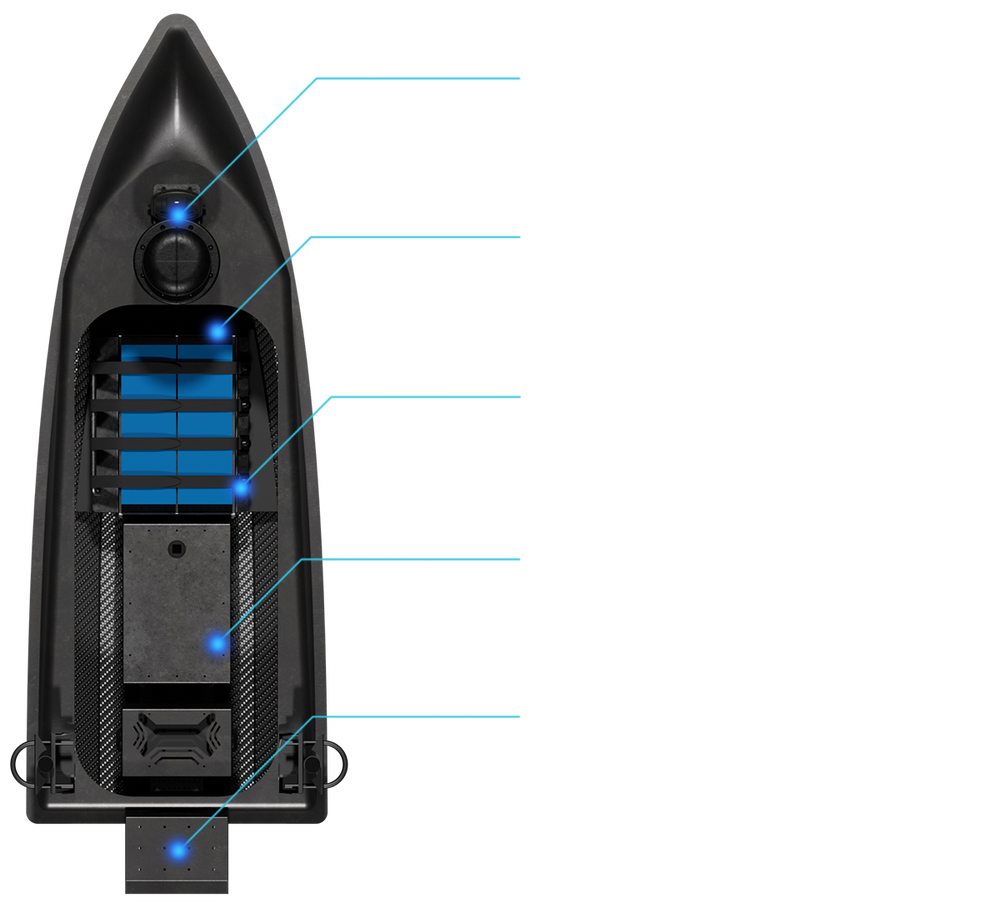

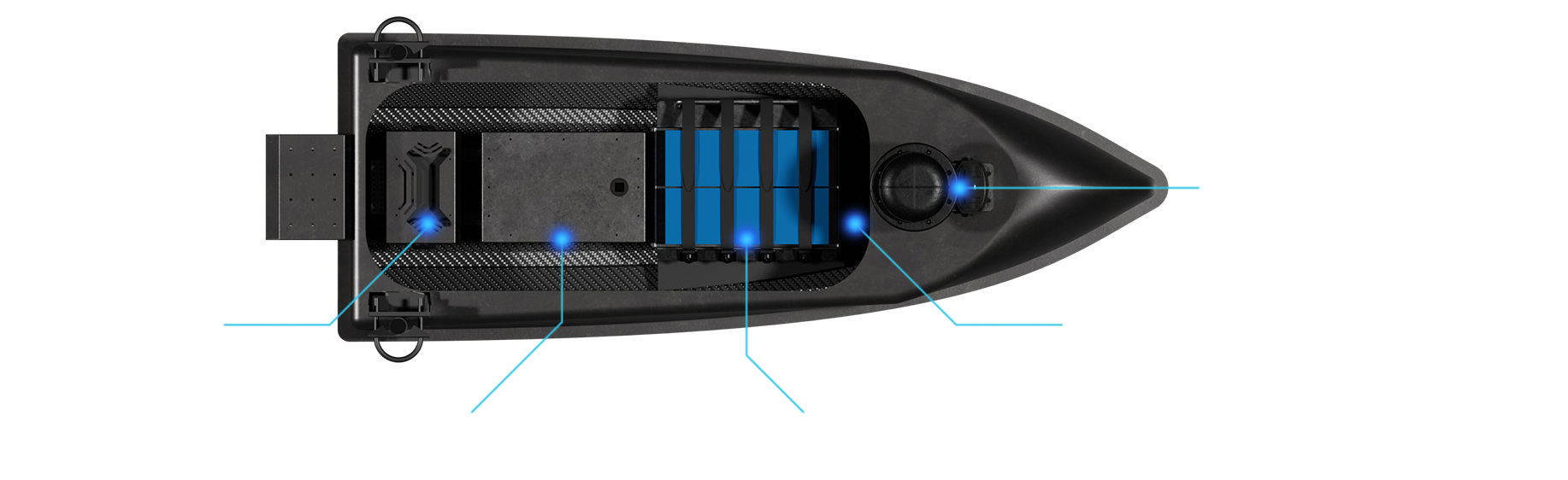

overview

mono-hull USV, compact unmanned surface vessel, shallow-water USV, jet-powered USV, autonomous marine platform. Contego - viper 110 overview - usv for marine robotics mono-hull USV, compact unmanned surface vessel, shallow-water USV, jet-powered USV, autonomous marine platform. Contego - viper 110 overview - usv for marine robotics

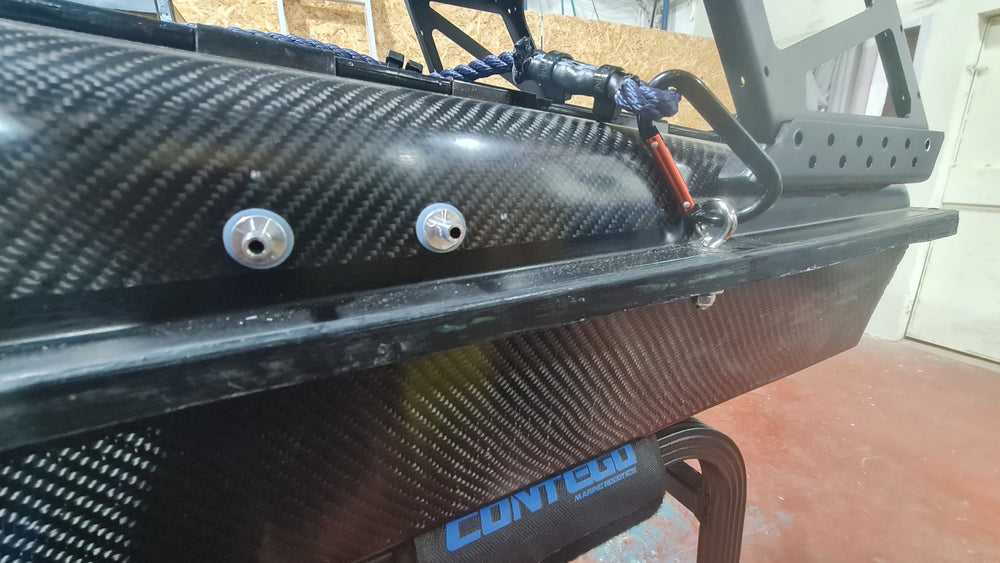

Composite Hull & Chassis

100% Carbon-fiber materials.

Our platforms use advanced carbon-fiber composites, ensuring maximum strength while remaining lightweight. Each vessel includes sealed internal compartments for safety, serviceability, and redundancy.

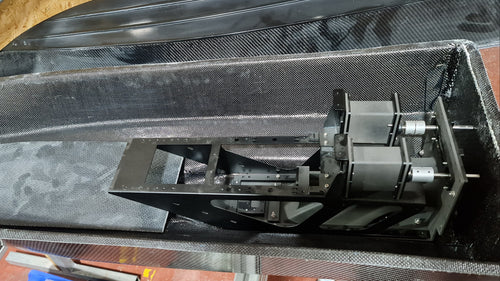

Our hulls feature a reinforced frame with integrated aluminum components — providing enhanced rigidity and long-term structural durability.

mono-hull USV, compact unmanned surface vessel, shallow-water USV, jet-powered USV, autonomous marine platform. Contego - viper 110 carbon fiber hull - usv for marine robotics

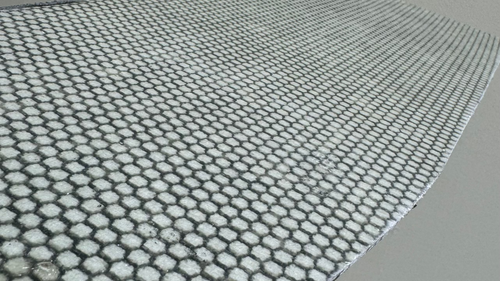

Contego - carbon honeycomb - USV for marine robotics mono-hull USV, compact unmanned surface vessel, shallow-water USV, jet-powered USV, autonomous marine platform. Contego - viper 110 carbon fiber hull - usv for marine robotics

viper 110 stand

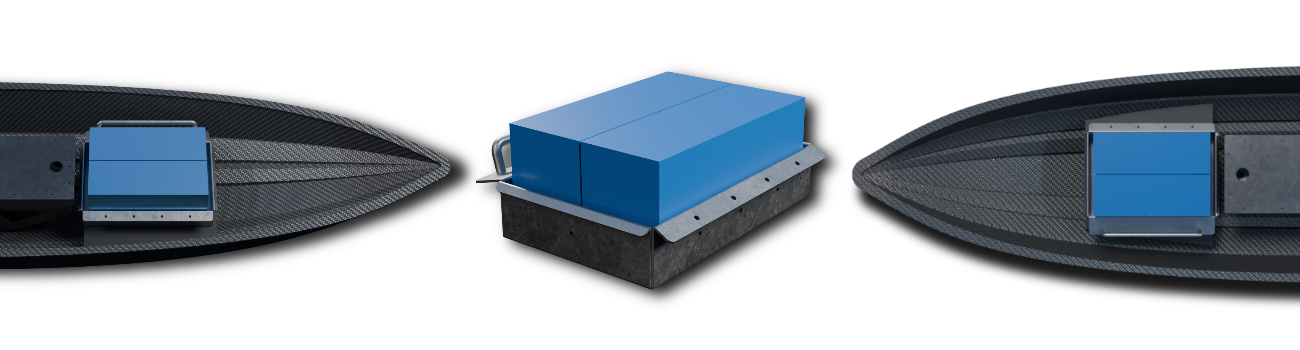

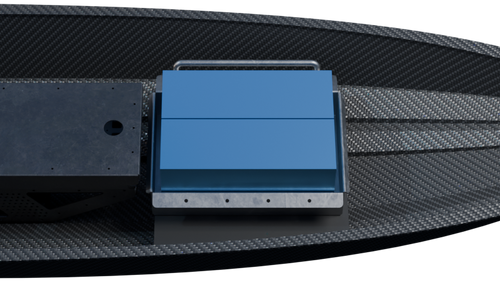

Low cost power & energy

Modular

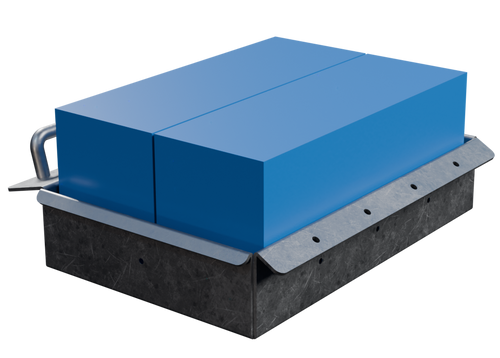

Hard Case .

Tattu Smart Battery Pro HV 14S with a rugged aluminum enclosure, high discharge performance, long cycle life, DroneCAN communication, and Bluetooth cell monitoring.

Compact

Exposed Housing .

Sealed, quick-swap, off-the-shelf Li-Po battery cases with aviation connectors, aluminum XT-90 sockets and per-battery voltage displays. An optional parallel charging station charges up to 2 cases simultaneously.

control

Navigation, GCS & Control

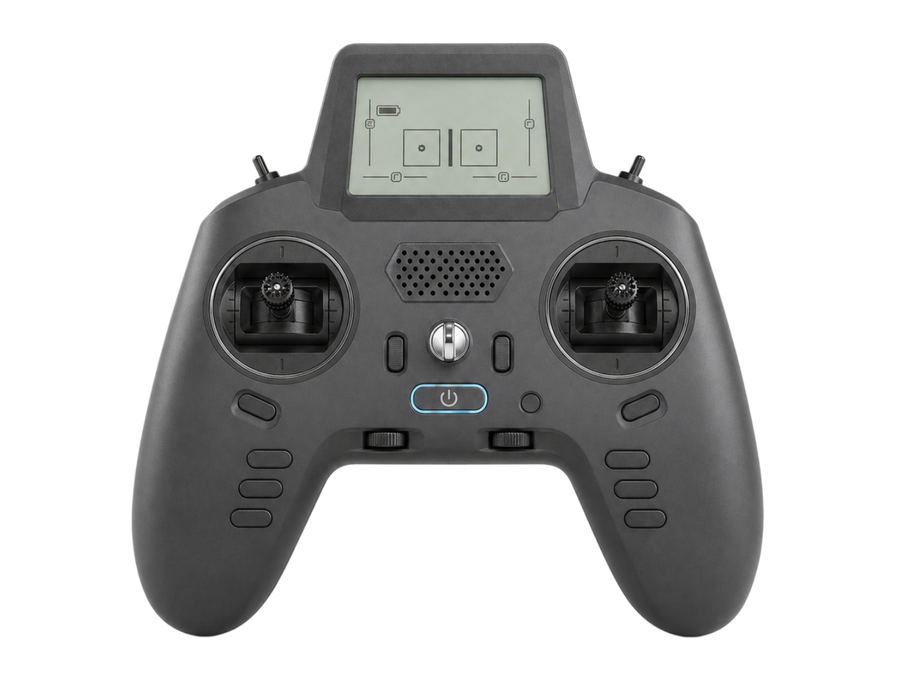

Contego - usv controller - USV for marine robotics

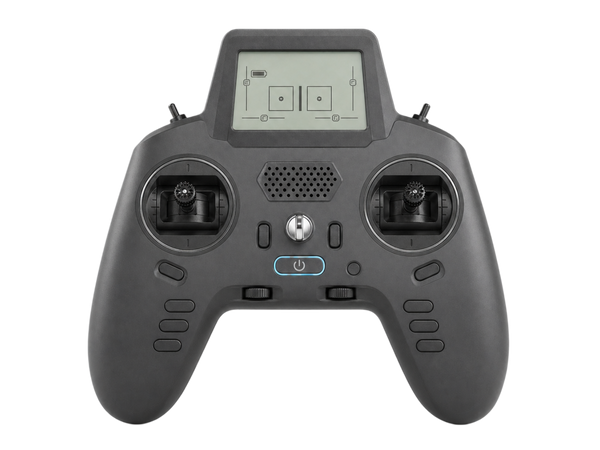

2.4 Ghz Basic Controller

2.4 GHz RC with basic telemetry (range <2km).

EXPLORE BY SIZE: 210

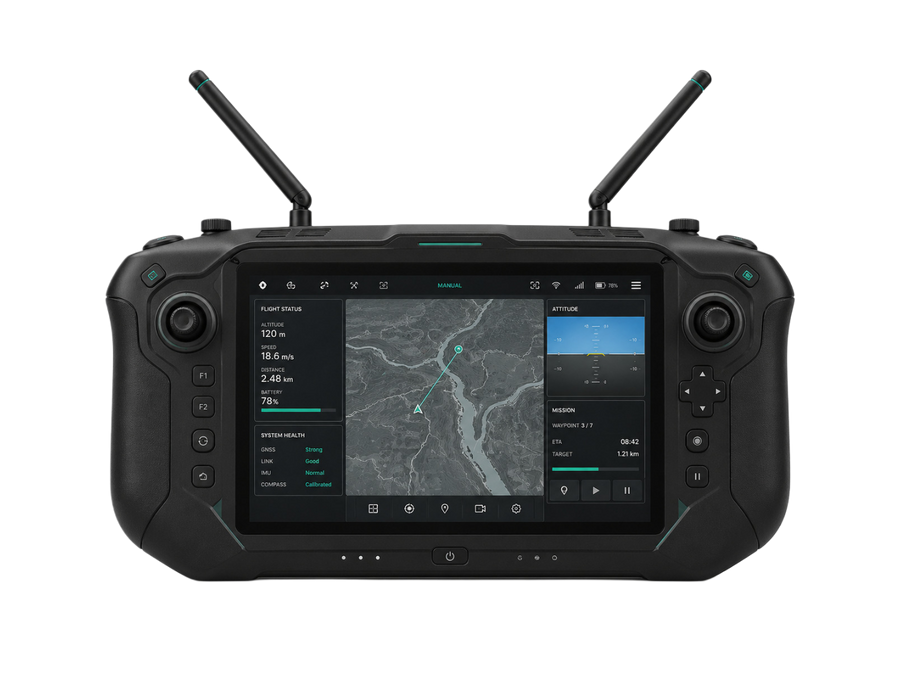

Contego - usv mobile gcs tablet - USV for marine robotics

HD mobile GCS tablet

Mobile Handheld GCS with camera view & gimble control including QGC software.

EXPLORE BY SIZE: 210

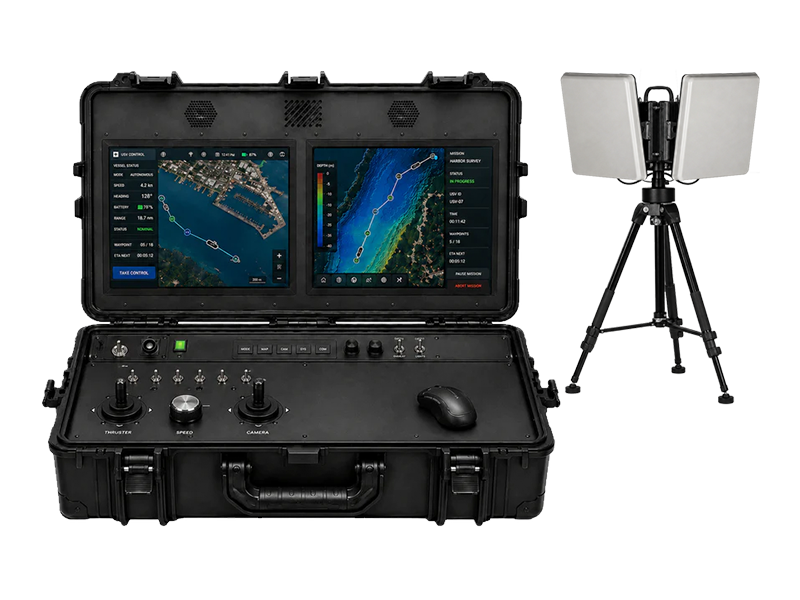

Contego - usv heavy duty gcs - USV for marine robotics

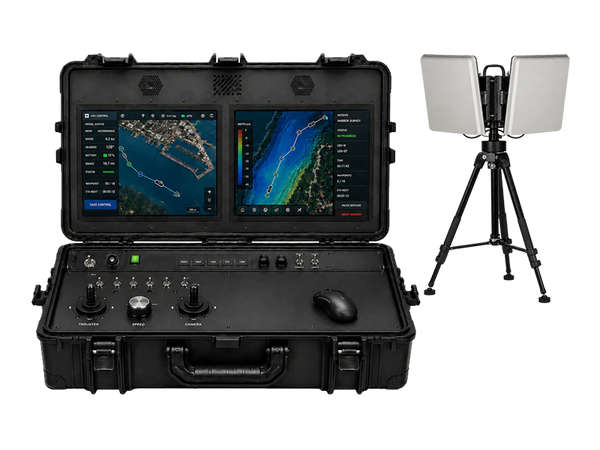

Multi-channel Heavy duty GCS

Advanced mobile GCS & Tripods for long range telemetry.

EXPLORE BY SIZE: 210

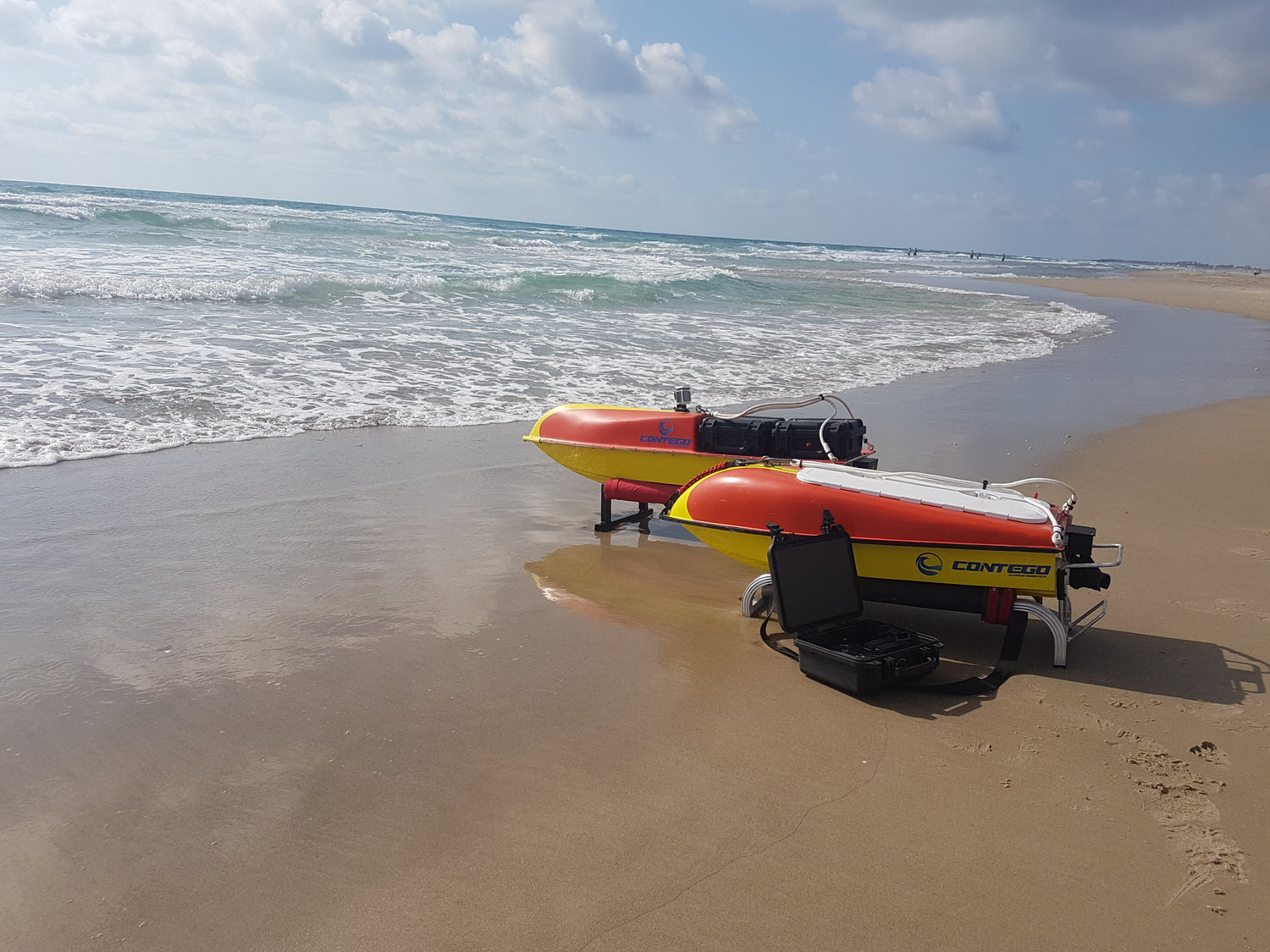

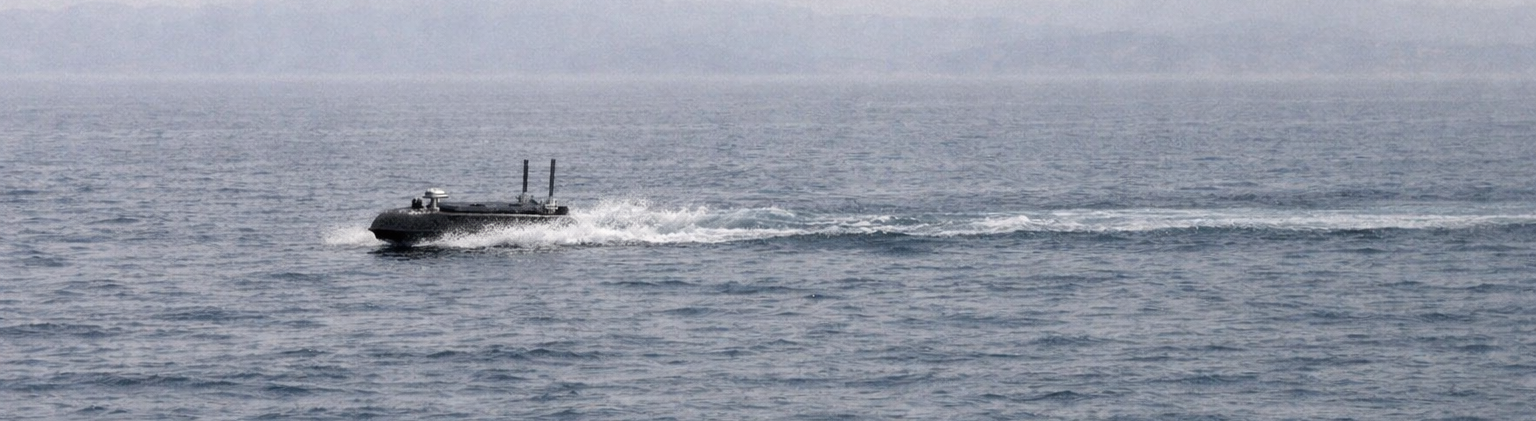

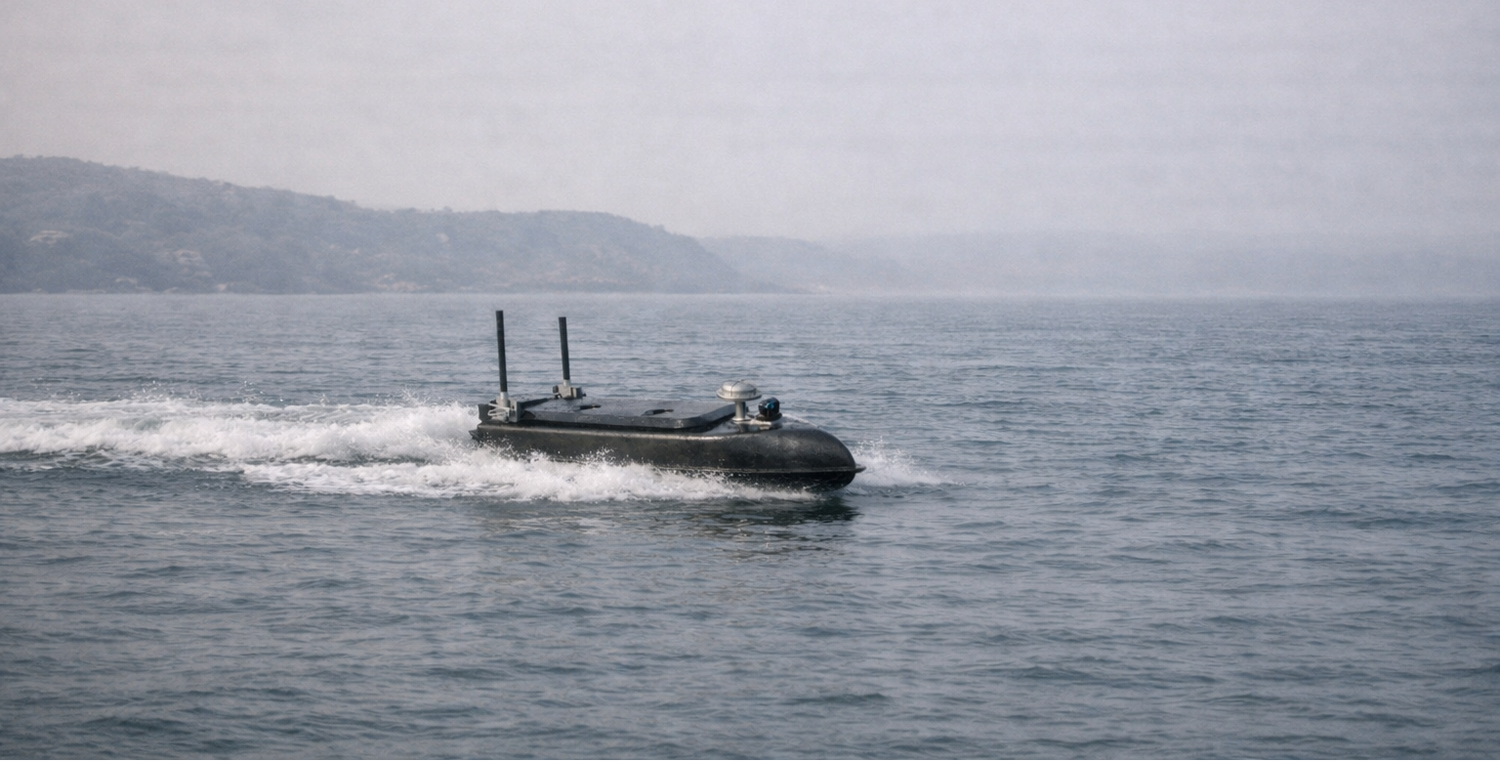

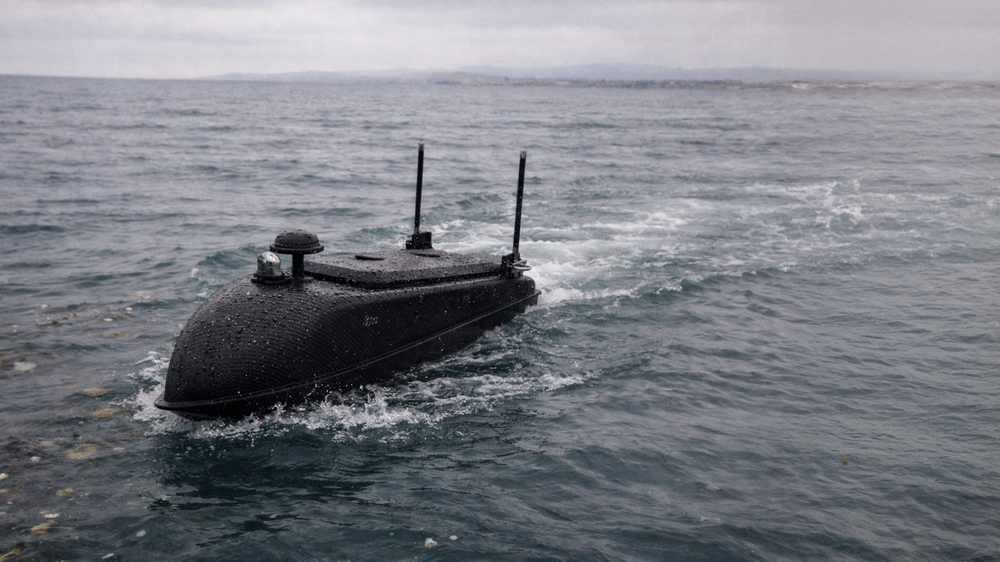

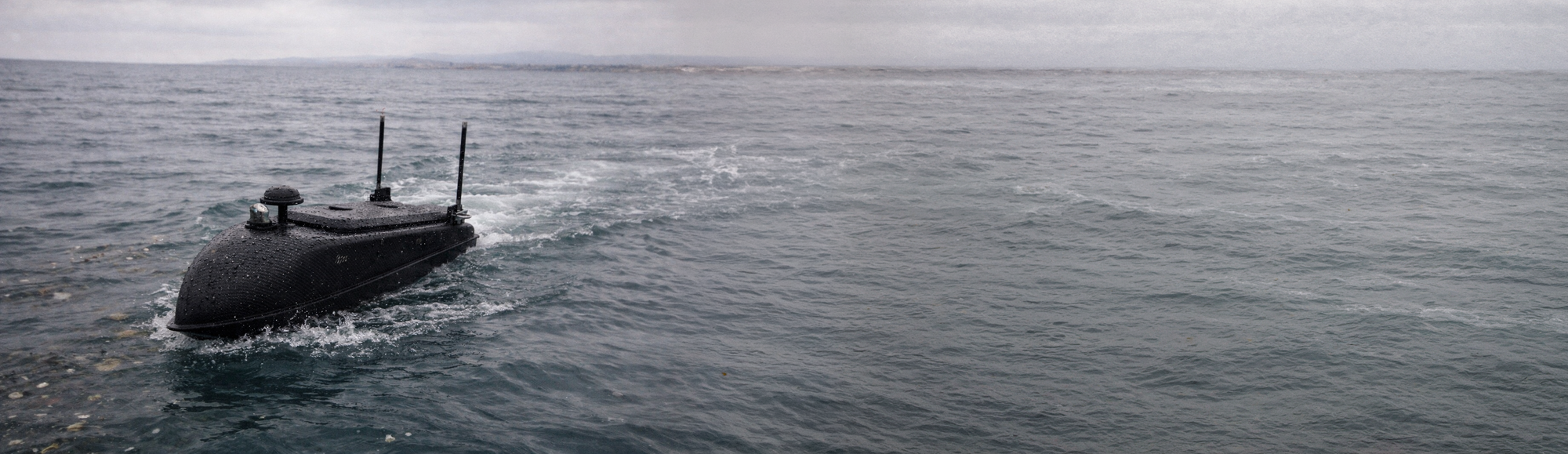

viper 110 in action

deployment options

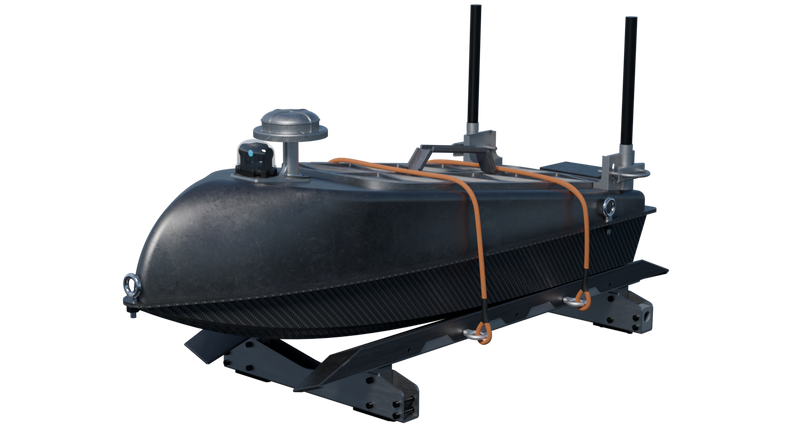

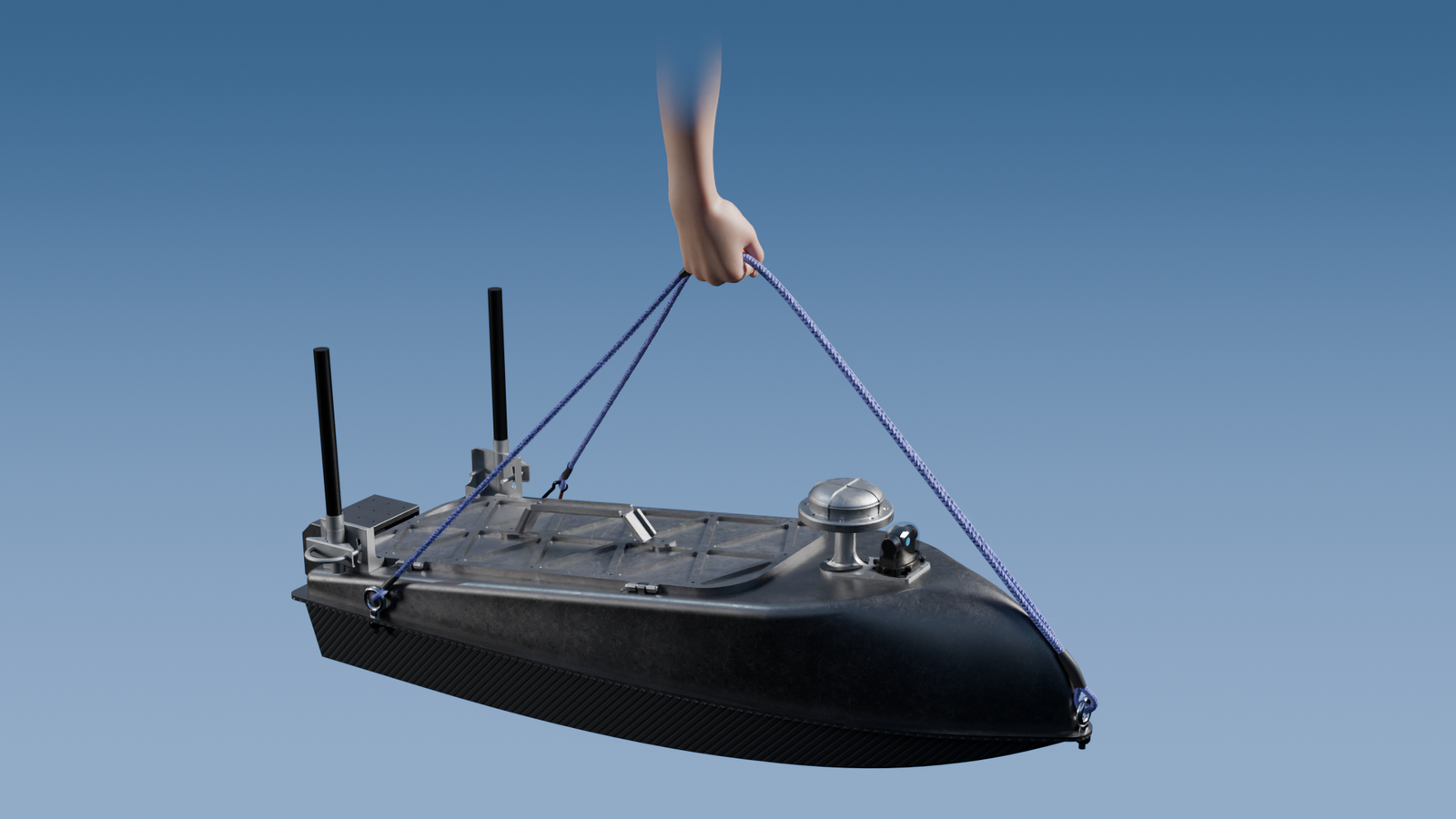

Hoisting
mono-hull USV, compact unmanned surface vessel, shallow-water USV, jet-powered USV, autonomous marine platform. Contego - viper 110 hoisting- usv for marine robotics

Hoisting

A marine-grade rope sling connected to three reinforced eye bolts provides a balanced central carrying point for convenient one-hand lifting, transport, launch, and recovery of the vessel.

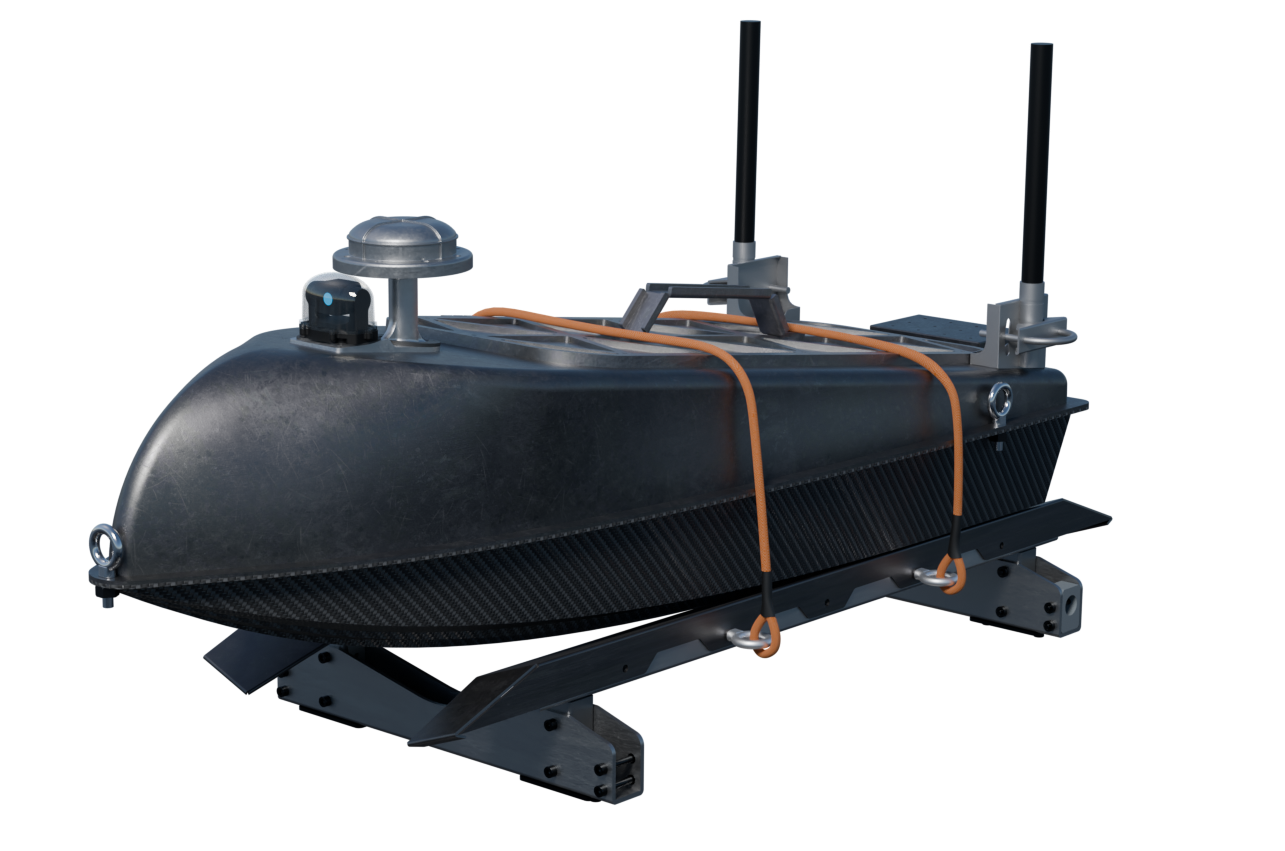

Docking
mono-hull USV, compact unmanned surface vessel, shallow-water USV, jet-powered USV, autonomous marine platform. Contego - viper 110 docking- usv for marine robotics

Docking

The Viper 110 connects to its docking station. Docking alignment is supported by integrated and guide rails for supporting the USV while parking

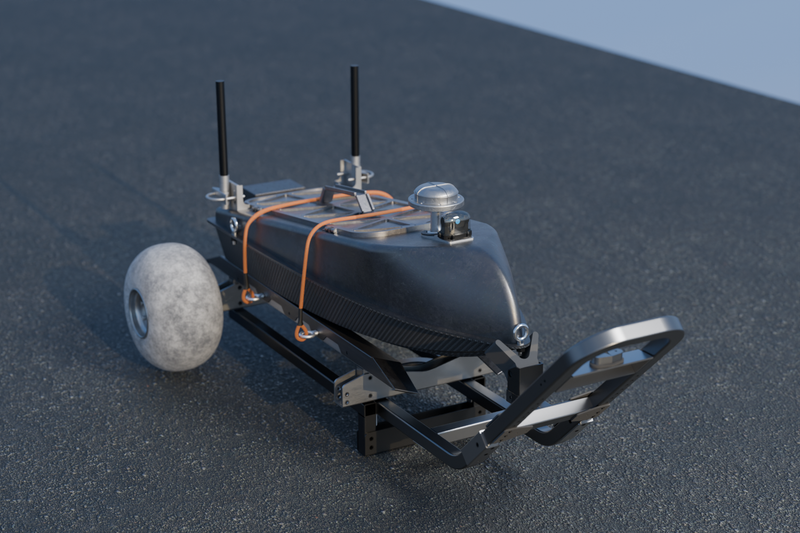

Slipway
mono-hull USV, compact unmanned surface vessel, shallow-water USV, jet-powered USV, autonomous marine platform. Contego - viper 110 docking- usv for marine robotics

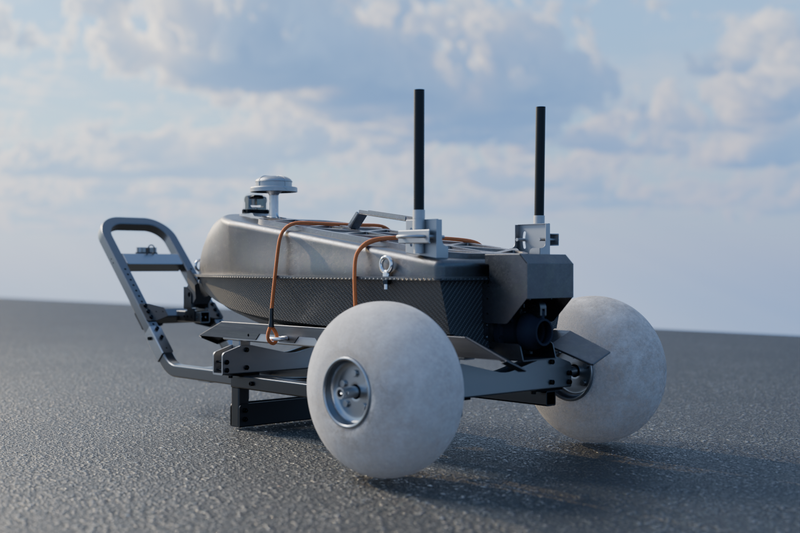

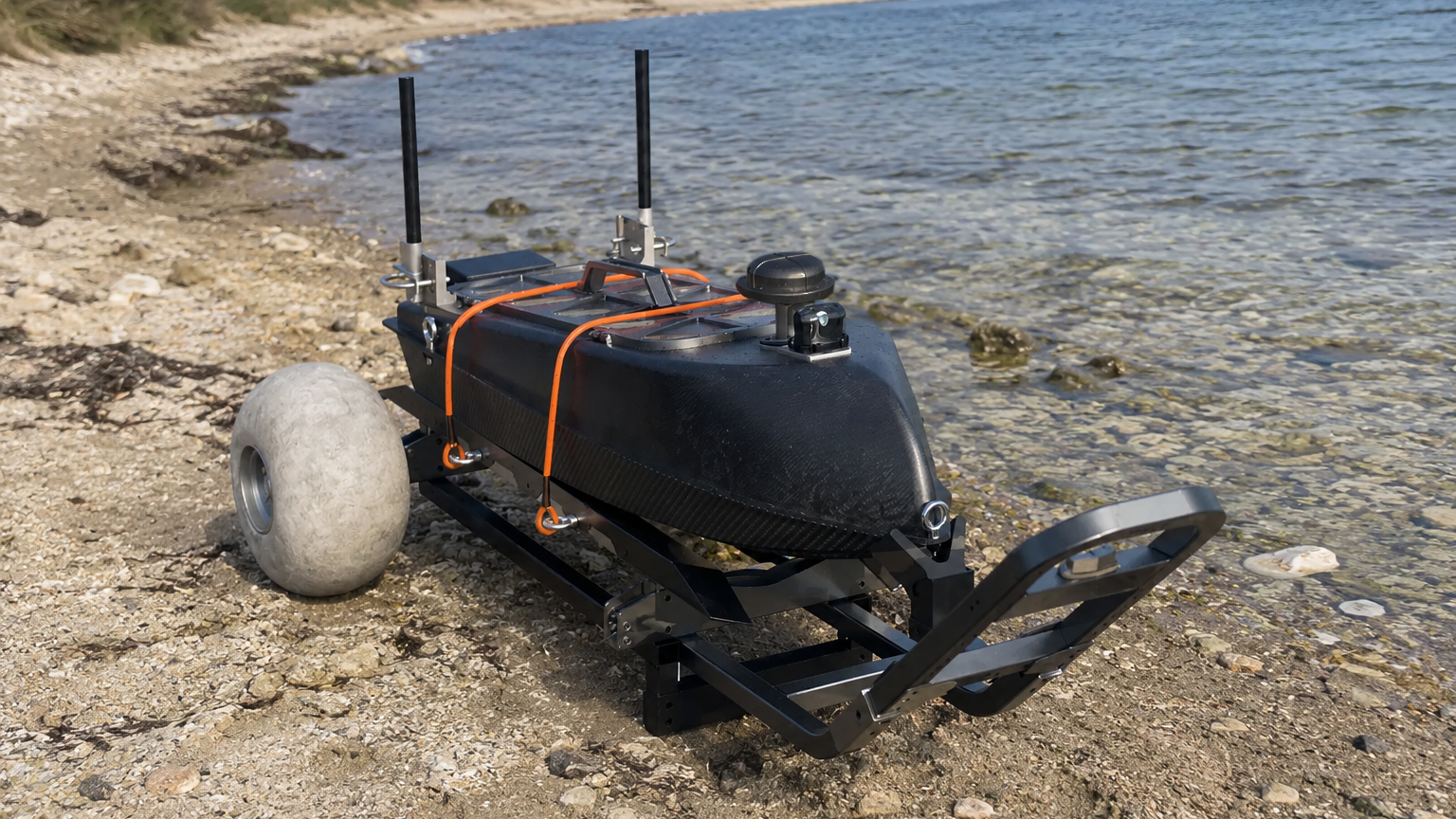

Slipway

A tailored deployment cart supports the Viper's stance and hydrodynamic hull shape,
providing secure movement and angled release to the water under full load.
