A compact, sealed PWM-controlled mechanism for remote payload deployment in marine environments. It supports up to four staged release steps, uses a sealed aluminum housing with an off-the-shelf IP68 servo, and is built from marine-suitable materials including aluminum, stainless steel, FKM seals, and silicone gaskets.
overview
Compact, sealed, and reliable PWM multi-step release mechanism for marine operations

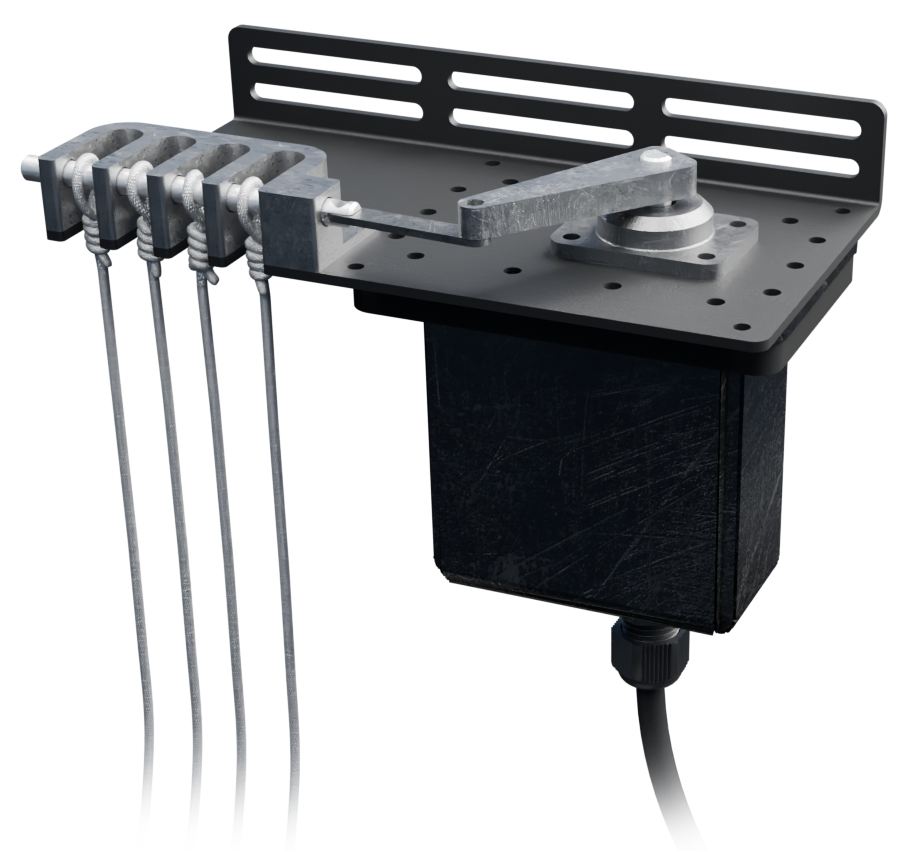

A robust payload release system designed for precise remote deployment in harsh marine environments. Built around a sealed aluminum housing and an off-the shelf IP68 servo, it enables controlled release by PWM signal with up to four release steps.
Key Advantages
Key Advantages

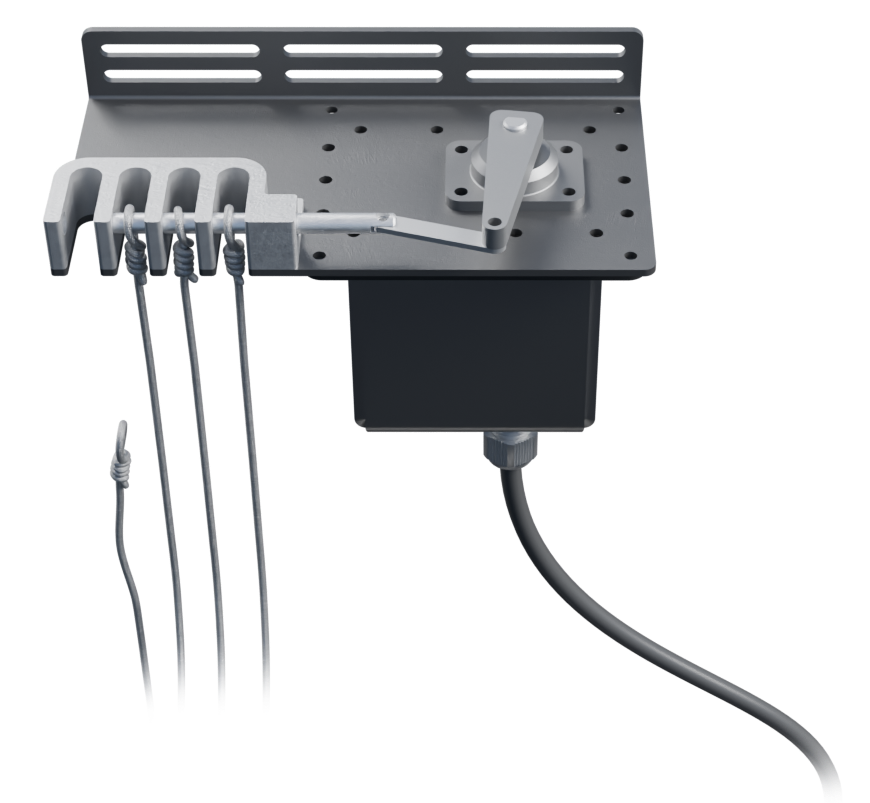

Four-step release capability
The mechanism allows staged release based on servo position and PWM command, enabling controlled deployment at the desired moment.
Waterproof servo enclosure
Built around an IP68 servo inside a sealed aluminum housing for reliable operation in
wet and demanding environments.
Built for harsh marine conditions
Constructed from aluminum and stainless steel only, with FKM seals, FKM oil seal, and silicone gaskets for strong environmental protection.
Flexible installation
Multiple mounting options allow integration on various platforms and structures.
Compatible with off-the-shelf servos
The housing is designed to support commonly available servos, making maintenanceand replacement easier.
Off-the-shelf
Off-the-shelf Servo
Off-the-shelf
Off-the-shelf Servo

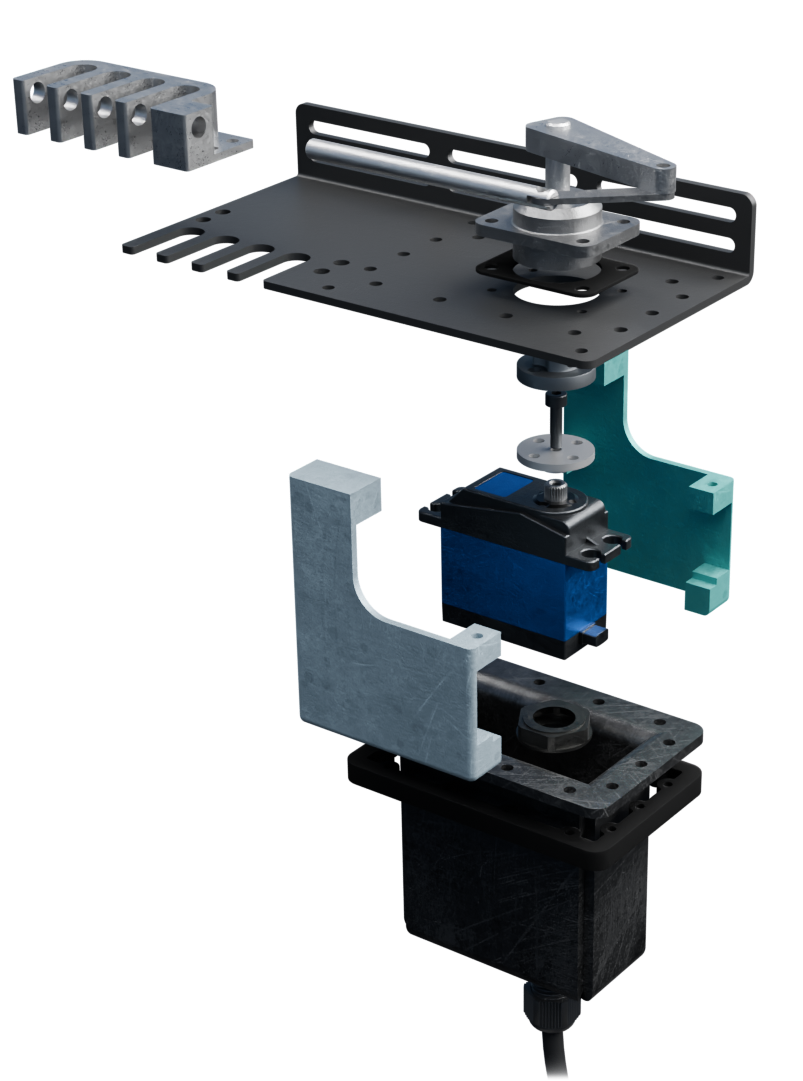

The system is designed as a sealed, rugged housing for an off-the-shelf servo. The servo does not have to be purchased from us - users can install a compatible servo of their choice based on their torque, speed, or control requirements.
This also makes maintenance simple: if a servo fails, needs replacement, or a higher torque option is required, the user can simply replace it without changing or repurchasing the full release mechanism or the Servo outer shell.
