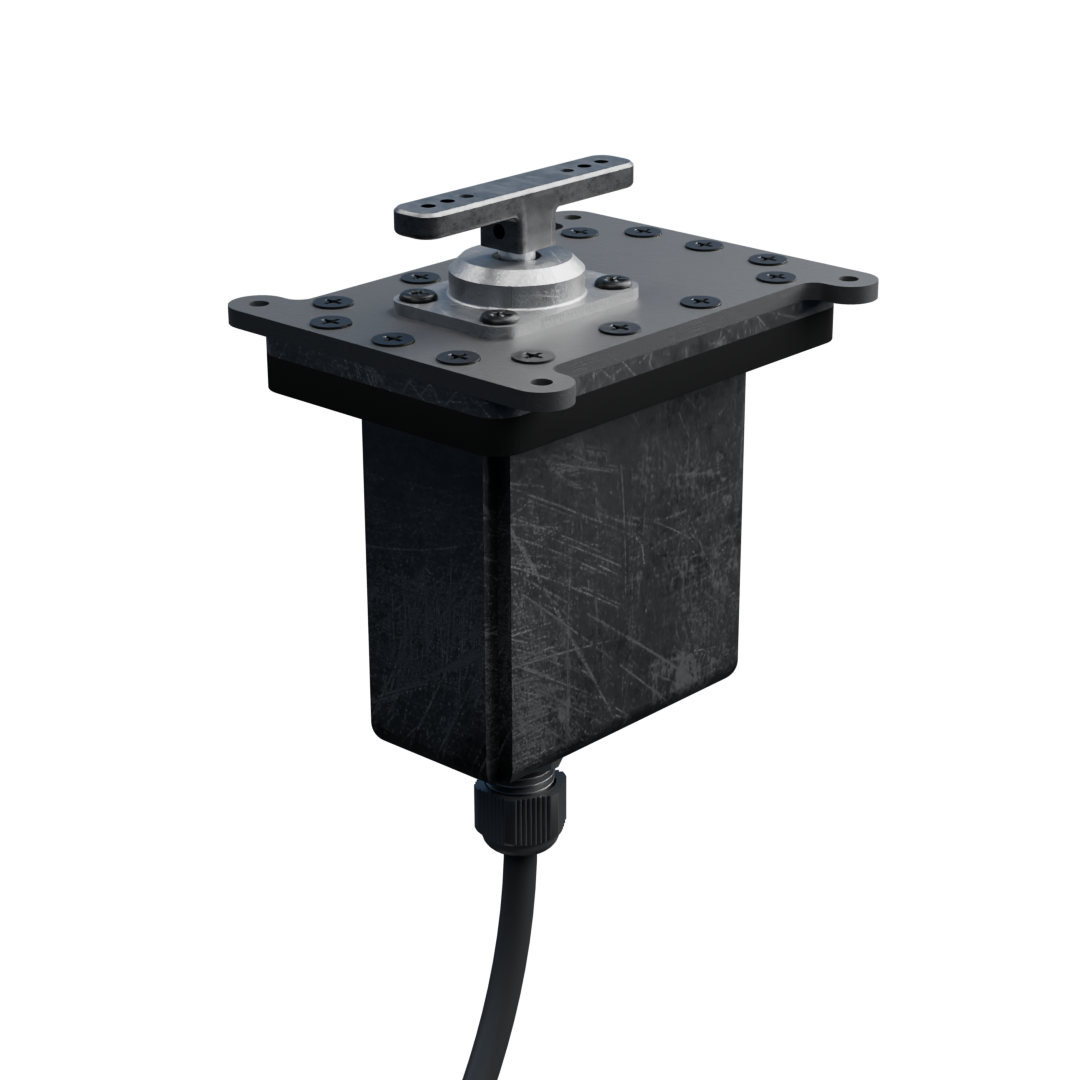

Marine Servos & Cases

Sealed, rugged housings for compatible off-the-shelf servos, designed for marine robotics and harsh environments.

IP-68
Off-the-Shelf Servo
Sealed Housing
Contego technical marine robotics illustration

IP68 Servo Specification

Detailed technical information and features
(Available without Servo)
Servo head
Silicone/FKM gasket
Gear
Stainless steel gear
Spline
25T
Operating Voltage
4.8V–8.4V
Torque
34 kg·cm
Rotation Angle
90°–270°
Motor Type
Brushless
Cable
18AWG multicore cable & Stainless steel gland
Sealed, rugged housings for compatible off-the-shelf servos, designed for marine robotics and harsh environments.
Contego - Servo case mechanism - usv for marine robotics

Key Advantages

Sealed, rugged housings for compatible off-the-shelf servos, designed for marine robotics and harsh environments.

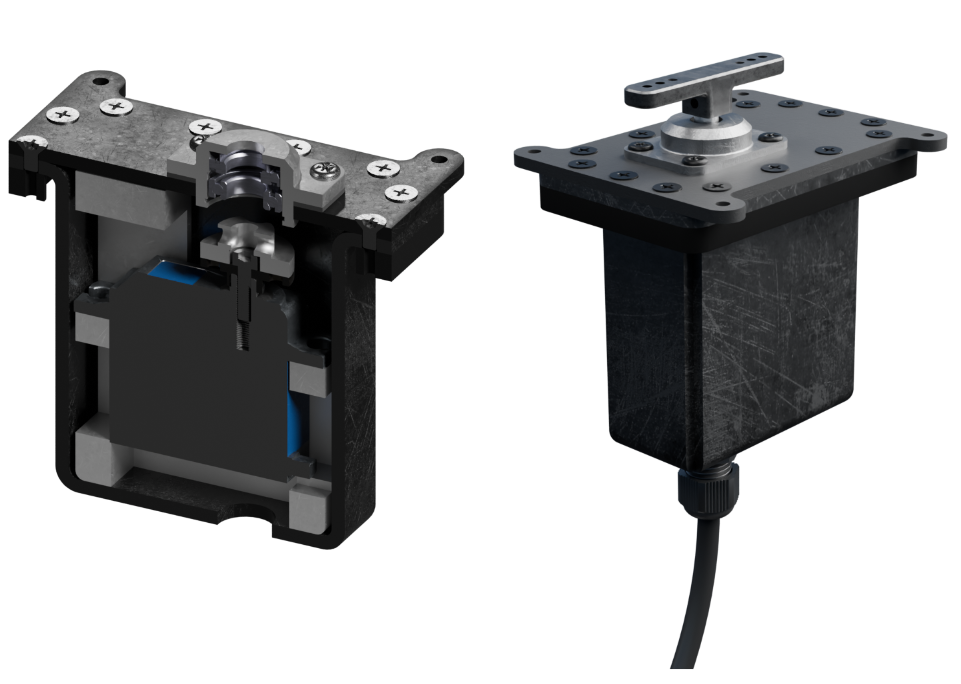

Contego - Servo - usv for marine robotics

Key Advantages

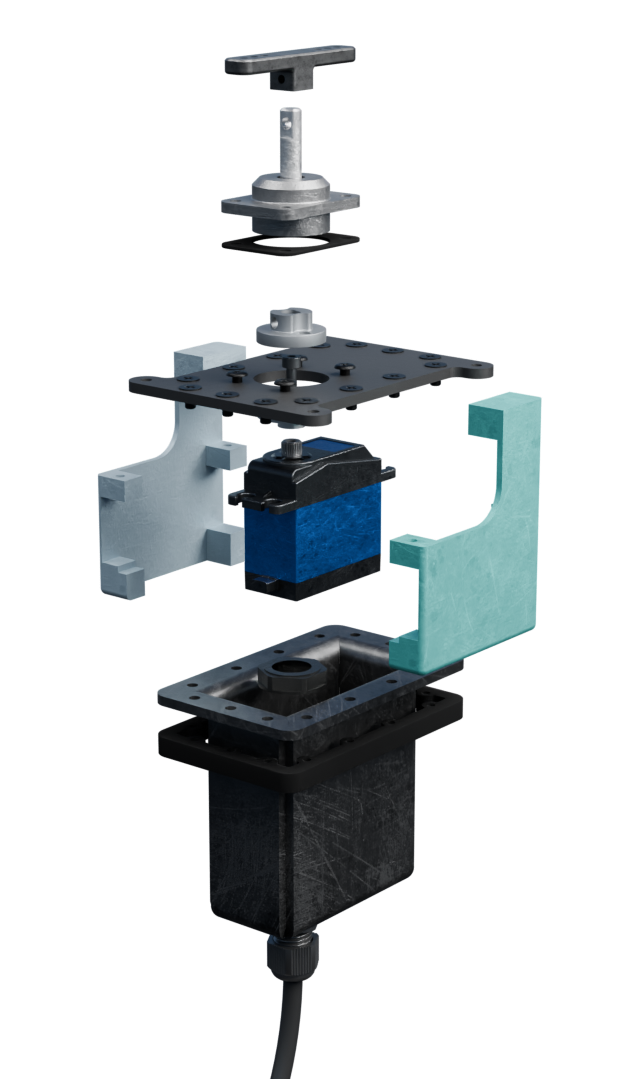

The system is designed as a sealed, rugged housing for an off-the-shelf servo. The servo does not have to be purchased from us — users can install a compatible servo of their choice based on their torque, speed, or control requirements.
This also makes maintenance simple: if a servo fails, needs replacement, or a higher-torque option is required, the user can simply replace it without changing or re-purchasing the full release mechanism or the Servo outer shell.

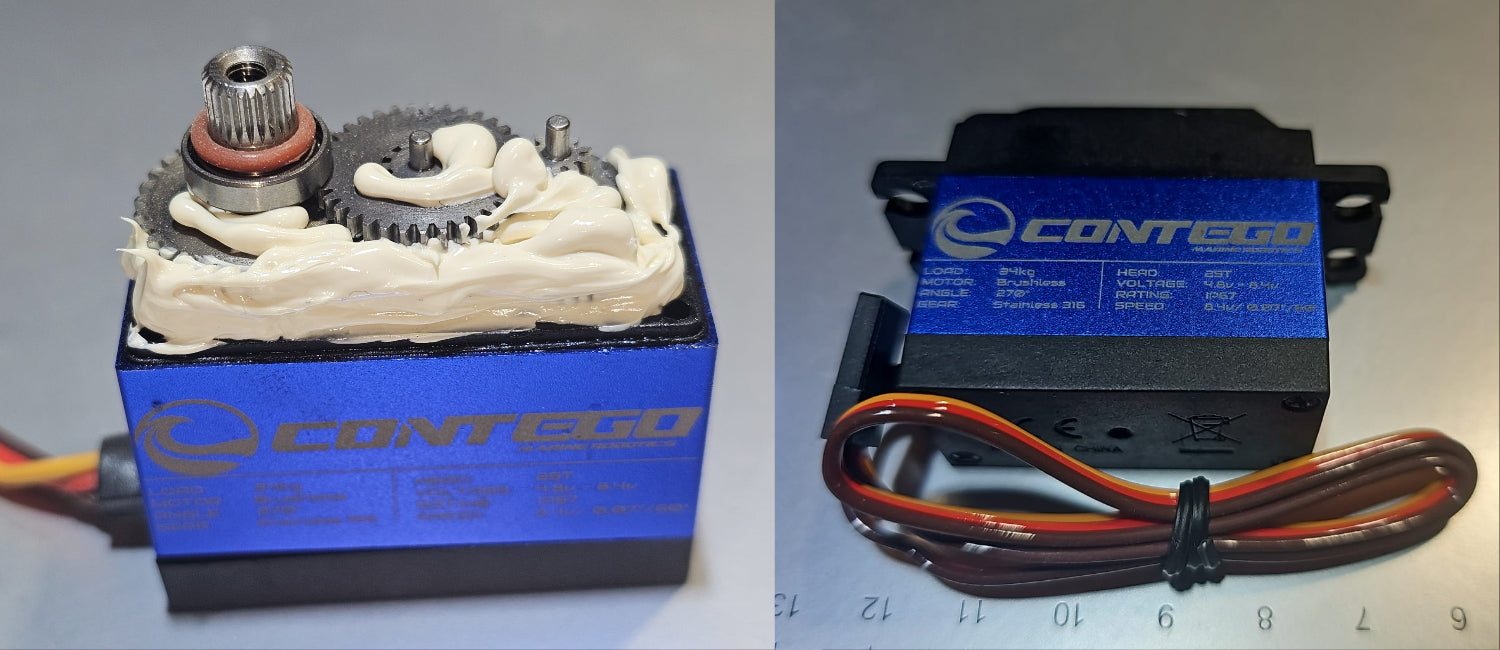

IP67 Servo Cases

Our own-brand IP67 servo features stainless-steel gears, marine-grade grease, and FKM/silicone seals for reliable operation in harsh marine environments.

IP-67
Torque 34 kg·cm
Contego technical marine robotics illustration

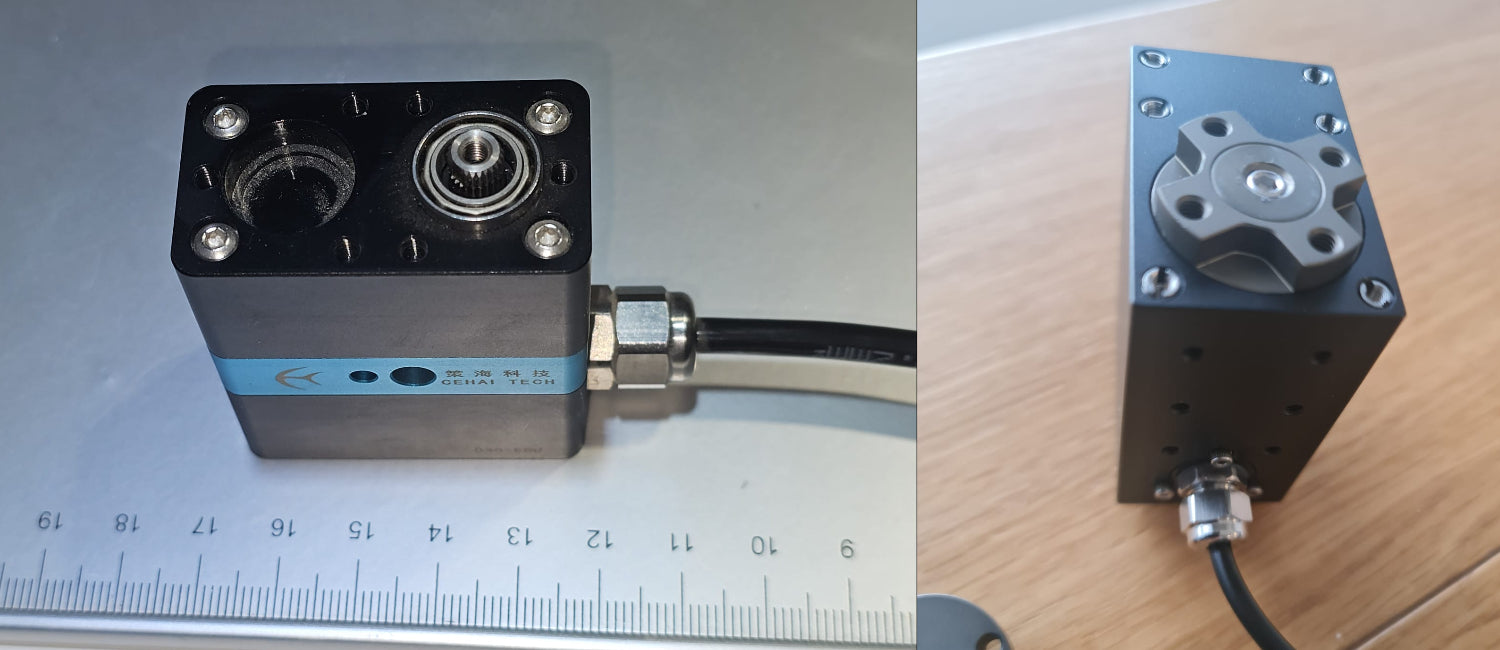

Submersible Servo

Depth-rated for over 50 m, our submersible servos are designed for underwater operation in ROV, AUV, and marine robotics applications.

Contego technical marine robotics illustration

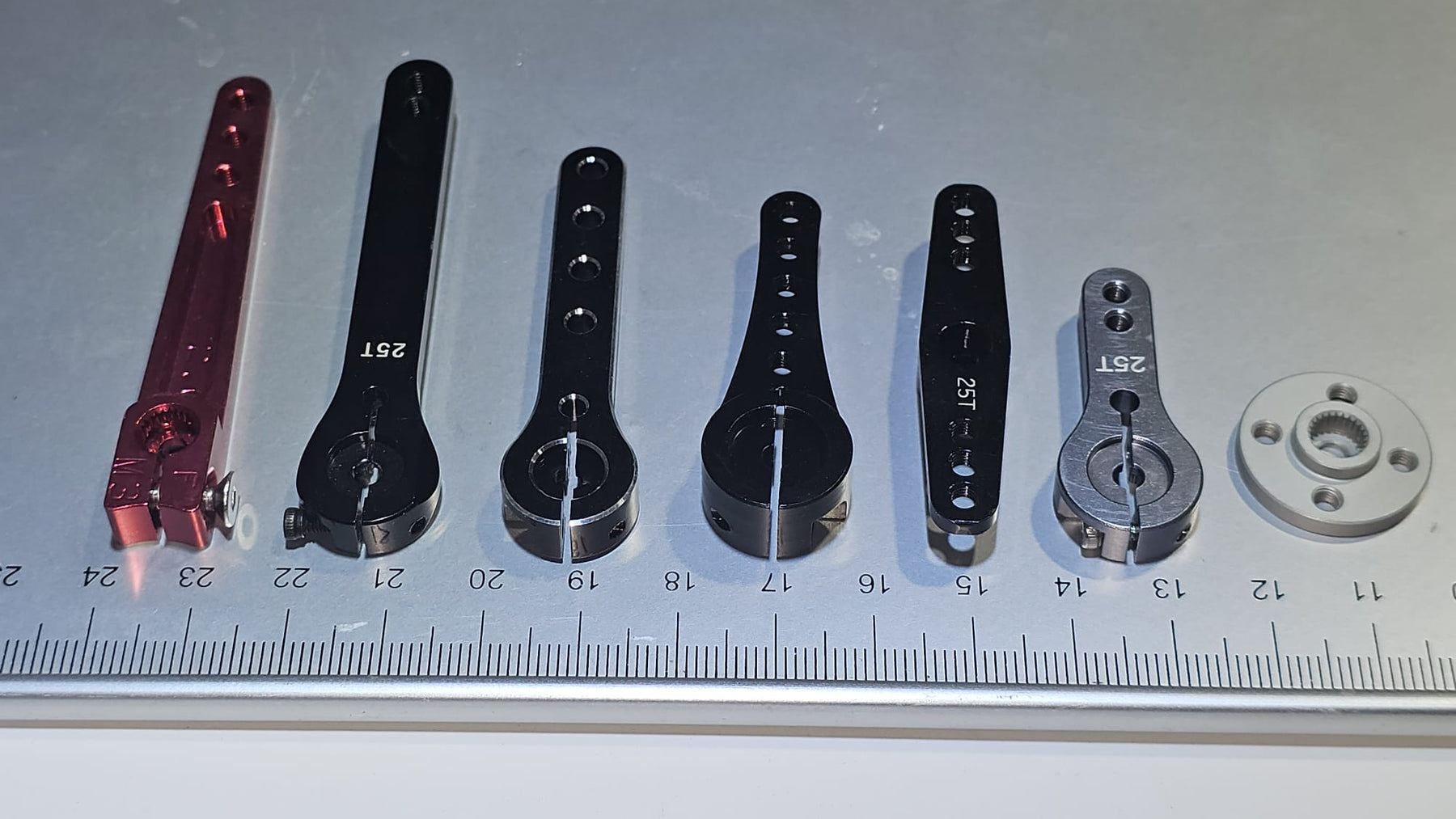

Servo Accessories

Available in multiple sizes and shapes, our servo arms and wheels can be customized to fit different mechanical requirements.

Contego technical marine robotics illustration
